Stainless Steel Pbf Bag Filter Machine For Industrial

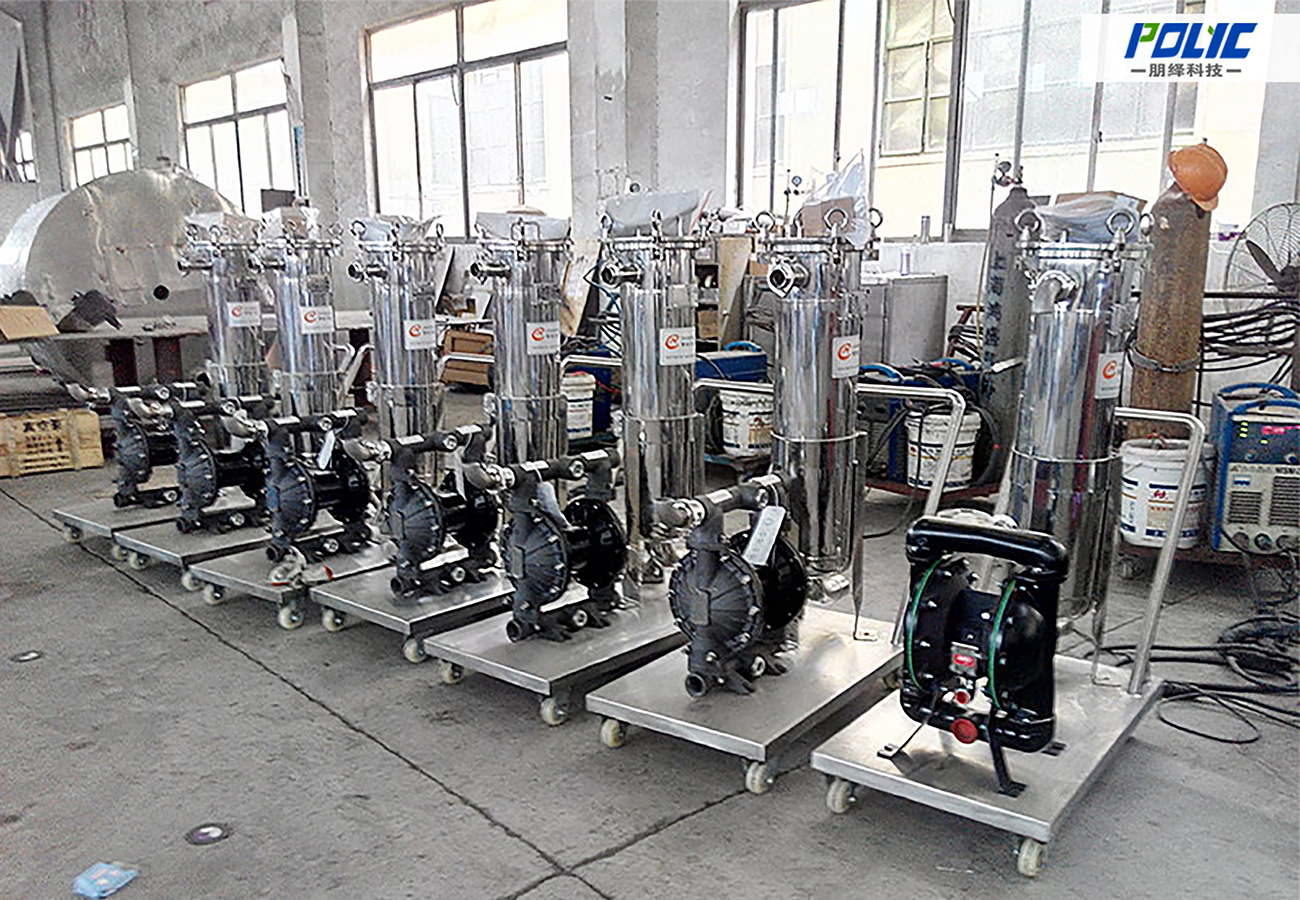

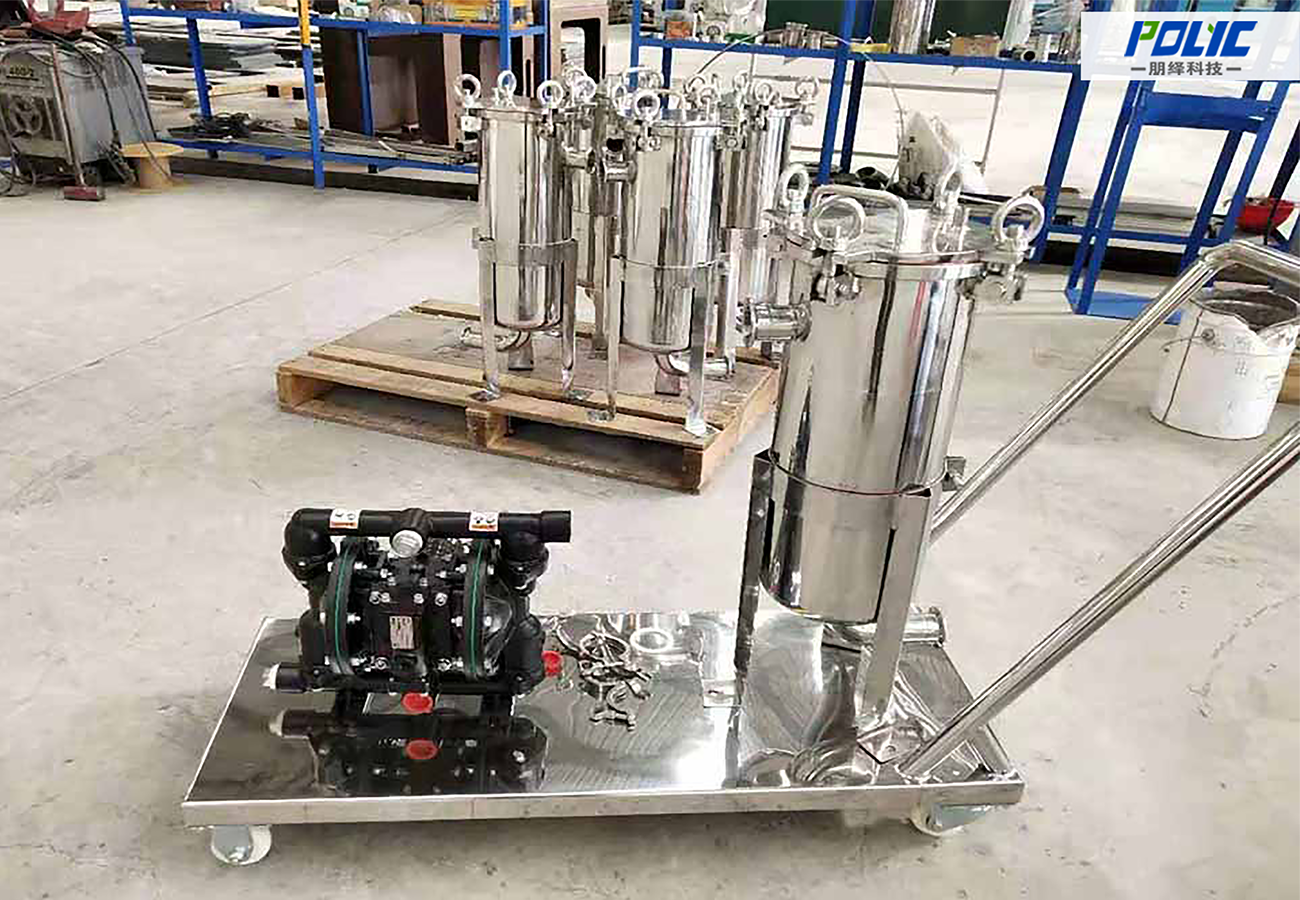

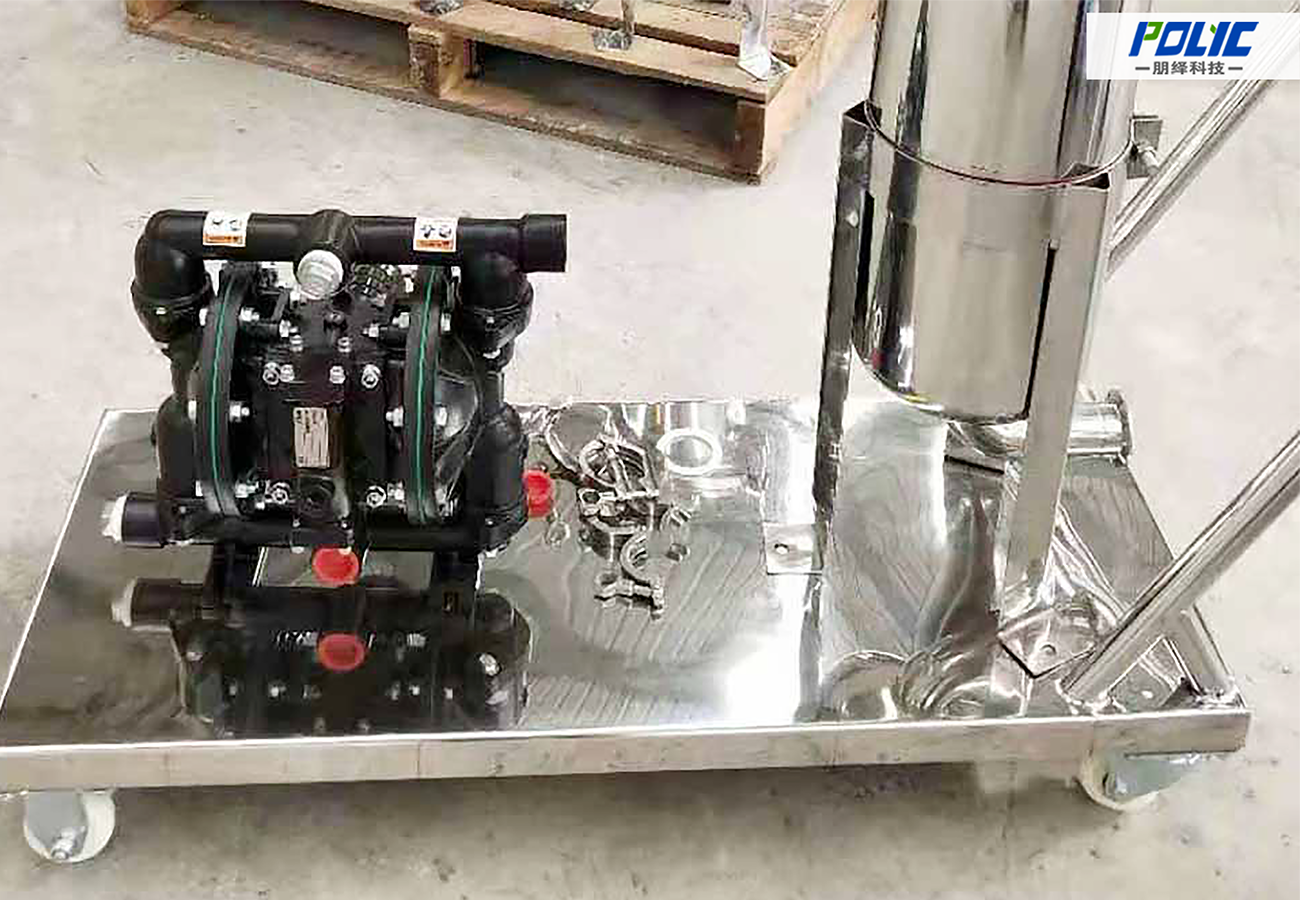

The Stainless Steel Pbf Bag Filter Machine For Industrial has a new structure, small volume, simple operation, energy efficiency, high efficiency, closed working and strong adaptability. It is widely used in the chemical, coating, printing ink and food industries. The Stainless Steel Pbf Bag Filter Machine For Industrial includes the single filter and duplex filter, forming complete set with the conveying pump unit assembled on the movable trolley. two kinds of mobile filter are optional for different raw material carbon steel and stainless steel.
PBF Industrial Bag Filter Housing Machine (SS304/SS316L Precision Liquid Filtration Vessel)
Product Overview & Key Features
The PBF series bag filter housing machine is a high-precision, pressure-rated liquid filtration system widely adopted across global chemical, coating, pharmaceutical, and water treatment industries. Engineered as a standardized industrial filtration unit, the PBF housing can be custom-fabricated to accommodate 1 to 40 filter bags within a single vessel to match specific plant flow rates and particle retention specifications.
- High-Grade Corrosion-Resistant Metallurgy: Filter housing bodies are fabricated from high-grade SS304 or SS316L stainless steel with mirror-polished or acid-passivated internal surfaces to ensure maximum chemical compatibility and sanitary compliance.
- Scalable Multi-Bag Capacity: Available in standard single-bag vessels (PBF25/PBF50) up to multi-bag housings holding up to 40 bags for high-volume industrial processing.
- High Pressure & Temperature Ratings: Standard design handles working pressures up to 0.6 MPa, working temperatures up to 120°C, and slurry viscosities up to ≤ 10 Pa.s.
- Zero-Bypass Sealing Design: Internal stainless steel support baskets feature precision compression rings to prevent unfiltered liquid bypass and optimize filter bag service life.
PBF Technical Parameters
| Type / Parameter | Filtration Area (m²) | Max Pressure (MPa) | Max Temperature (°C) | Max Viscosity (Pa.s) | Inlet / Outlet Connection |
|---|---|---|---|---|---|
| PBF25 | 0.25 | 0.6 | < 120 | ≤ 10 | DN25 |
| PBF50 | 0.50 | 0.6 | < 120 | ≤ 10 | DN50 |
*Note: Parameters above represent standard single-bag vessels. Multi-bag housings holding 2, 4, 8, up to 40 filter bags with higher pressure ratings (up to 1.6 MPa) or pneumatic quick-open lids are custom-fabricated on request.
Our Manufacturing Advantages
REAL MANUFACTURER
Direct fabrication in our 9,000 m² factory in Wuxi, Jiangsu. In-house SS304/SS316L vessel rolling, precision welding, and hydrostatic pressure testing without trading markups.
24 HOUR ONLINE SUPPORT
Direct consultation with POLYC engineers for filter micron rating selection (0.5 to 500 microns), bag quantity sizing, and chemical compatibility advice.
100% CUSTOMIZABLE
Custom flange standards (ANSI/DIN/JIS), quick-open rocker arms, heating jackets, duplex valve manifolds, and magnetic filter inserts.
30-45 DAYS FAST DELIVERY
Standardized vessel fabrication protocols and stock SS304/SS316L plate raw materials ensure rapid turnaround and reliable international export shipping.
STRICT QUALITY CONTROL
ISO9001 and CE certified manufacturing. Every PBF bag filter vessel undergoes 100% hydrostatic pressure testing and weld X-ray inspections prior to packaging.
3 YEARS WARRANTY
Backed by our standard 3-Year Global Warranty covering main stainless steel filter housings, support baskets, and structural mounting legs.
Product Details
SS304/SS316L Filter Housing Vessel
Stainless Steel Support Basket
Eyebolt Quick-Open Lid Mechanism
Flange Ports & Pressure Gauge Mount
Target Application Spectrum
Alumina Slurries
Ceramic Inks
Industrial Coatings
Inkjet Inks
Lithium Battery Slurry
Nano-Material Suspensions
Pharmaceutical Liquids
Printing & Flexo Inks
Ready to Discuss Your Liquid Filtration Requirements?
Tell us your liquid medium, flow rate (m³/h), viscosity, and target micron rating — our Wuxi engineering team will recommend the right PBF configuration and provide a quote within 24 hours.
