Core Technology & Working Principle
A disperser does not grind. It wets powder out and breaks agglomerates down to their primary particle size by feeding them into a high-velocity shear zone at the edge of a spinning disc. Everything about the PDM is arranged around getting powder into that zone fast, and keeping the batch circulating so material is not left sitting on the tank wall.
▲ Cowles Disc Shear Zone
The toothed disc accelerates product radially outward at its rim, where the velocity difference between disc edge and bulk material does the dispersing work. Product deflects up and down the tank wall and returns to the center, forming a controlled vortex that keeps pulling unmixed material into the shear zone.
▲ Hydraulic Lift and Tank Clamp
A heavy hydraulic column raises the disc clear of the tank rim for cleaning and lowers it to the working depth without shimming. The mechanical clamp, or the optional belt clamp on larger frames, locks the vessel to the base so the vortex cannot rotate or walk it.

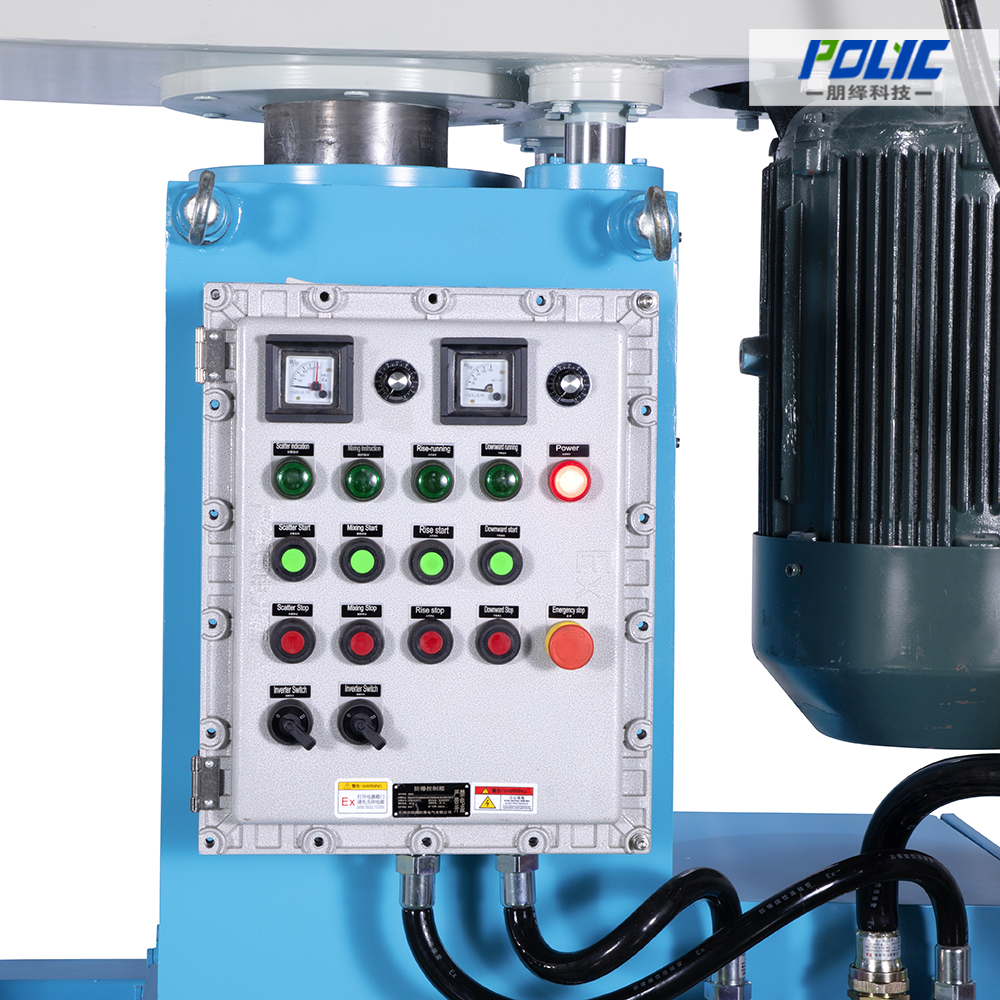

▲ Variable Frequency Drive
The VFD spans the full 0 to 1450 rpm range, so the same machine can fold light powder in slowly at low speed without dusting, then open up to full tip speed for the de-agglomeration stage.
Precision Engineered Details
The parts below are what an operator touches every shift, and what decides whether the disperser holds its accuracy after a few years of production.
PDM Series Technical Parameters
Motor options are given as ranges because the final drive rating follows the product viscosity and batch size rather than the tank volume alone.
| Model | Power (kW) | Speed (rpm) | Disc Diameter (mm) | Lift Height (mm) | Batch Handling (L) |
|---|---|---|---|---|---|
| PDM 1.5/2.2 | 1.5 / 2.2 | 0–1450 | 150 | 600 | 50–100 |
| PDM 4.5/5.5 | 4.5 / 5.5 | 0–1450 | 200 | 800 | 100–200 |
| PDM 7.5/11/15 | 7.5 / 11 / 15 | 0–1450 | 250 / 300 | 900 | 400–600 |
| PDM 18.5/22/30 | 18.5 / 22 / 30 | 0–1450 | 350 / 400 | 1200 | 600–2000 |
| PDM 37/45 | 37 / 45 | 0–1200 | 450 | 1600 | 1000–2500 |
| PDM 55/75/90 | 55 / 75 / 90 | 0–1200 | 500 / 550 / 600 | 1600 | 5000 |
Reference projects in your industry are available on request.
Our Manufacturing Advantages
🏢 Direct Source Factory
Shanghai Polyc Technology Co., Ltd. is not a reseller. Every PDM high speed disperser is machined, assembled and tested at our Wuxi plant, so you buy at the factory price and speak directly to the engineers who built it.
✈️ 30–45 Days Fast Delivery
Standard models ship in 30–45 days from confirmed drawings, thanks to our integrated vertical in-house production lines.
🛡️ Strict Quality Control
Key welds, seals and running accuracy are inspected before assembly, and each machine is run at the factory before packing.
🔧 3-Year Global Warranty
Every unit is covered for three years, with remote video support and spare parts stocked for dispatch worldwide.
Target Application Spectrum
The PDM is specified wherever a powder has to be wetted into a liquid vehicle before the batch goes on to milling or let-down. Typical duties:
Paint & Coating
Wetting pigment and extender into the let-down vehicle before fine grinding, at low to medium viscosity.
Printing Inks
Pre-dispersing pigment concentrate ahead of the fine-grinding stage, where an unwetted agglomerate becomes a mill screen blockage.
Adhesives & Sealants
Dispersing filler into resin at the front end of an adhesive batch, before viscosity climbs out of the disperser range.
Chemical & Agrochemical
Wetting powders into suspension concentrates and similar liquid formulations at production scale.
Specify a PDM Disperser for Your Batch
Send your product type, batch volume in liters, target viscosity and whether the formula is solvent-based. Our Wuxi engineers select the frame size, disc diameter and lift height, confirm the electrical build for your site, then quote direct from the factory.
Technical FAQ
The questions process engineers ask before specifying a single-shaft high speed disperser.
