Products Automatic Filling Machine Manufacturer Supply
Company Advantages
· Polyc Machine automatic filling machine manufacturer is fabricated using the top-grade raw material and sophisticated production technology.
· Through our quality assurance program, the product has achieved and maintained a high level of quality.
· Polyc Machine's strong sales network platform provides excellent after-sales services.
Product Features:

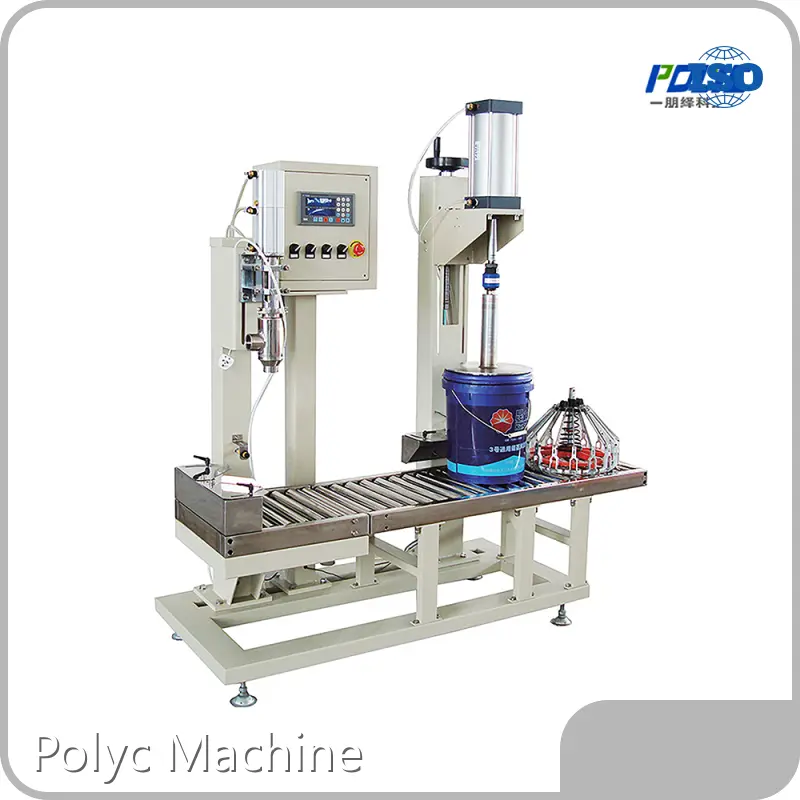

PFM Filling Machine (Semi-automatic filling machine) adopts gravimetric method to measure, by weighing sensor output signal to control the charging valve opening, so as to realize the purpose of automatic filling. By equipped with a pump in the front end of the feeding port, or pressuring the material from tank to the filling machine. The filter device can be added before filling to guarantee the quality of products. The equipment has advantages of high filling efficiency and small filling error.
Characteristics:
1) It adopts gravimetric filling with high measuring precision and can’t be influenced by material.
2) Fast and slow feeding valves, promoting filling speed and precision greatly.
3)Wide measuring range and the accuracy is +-10g/barrel.
4)Filling nozzle adopts anti-leak device, air-free in the filling material.
5)Automatic feeding and filling, equipped with pneumatic nipping and capping set.
Product Parameters：
|
Item |
Technical parameter/Type |
PFM5 |
PFM10 |
PFM30 |
PFM50 |
|
Semi-auto Filling Machine |
Filling range (Kg) |
0.5-5 |
2-10 |
5-30 |
10-50 |
|
Filling speed(time/h) |
160-240 |
160-240 |
160-240 |
160-240 |
|
|
Rate of accuracy |
0.25 |
0.25 |
0.25 |
0.25 |
|
|
Accuracy |
±0.2% |
±0.2% |
±0.2% |
±0.2% |
|
|
Power |
AC220V/50Hz±2Hz |
||||
|
Air Source |
Flux0.1m³/min Pressure:0.4-0.6Mpa |
||||
|
Working temp. |
0℃-40℃ |
||||
Our Advantages：
REAL MANUFACTUREN
24 HOUR ONLINE
CUSTOMIZABLE
30-45 DAYS FAST DELIVERY
STRICTLY QUALITY CONTROL
3 YEARS WARRANTY
Product Details：
Application：
-
Alumina
-
ceramic ink
-
coatings
-
inkjet ink
-
lithium
-
nano-material
-
pharmaceutics
-
printing ink
Company Features
· Shanghai Polyc Technology Co.,Ltd now has been listed among the very popular automatic filling machine manufacturer maker.
· We have a reputation as an innovator. Our products and technologies continually set new standards for performance and durability. We hold many patents on processes, technologies and material science. We rely on our long-term relationships with trusted suppliers and distributors to deliver consistent quality while maintaining a sustainable approach. We have adapted to the demands of a growing and rapidly changing industry of automatic filling machine manufacturer. We now boast a large sophisticated facility, the highest quality standards in the industry and a dynamic research and development team.
· Bearing social responsibility, we make ourselves a long-time partner of several charitable foundations and green initiatives. We also promote individual participation and contributions from our team members.
Product Comparison
Compared with similar products, the automatic filling machine manufacturer of Polyc Machine is more strict in the selection of raw materials. The specific aspects are as follows.
