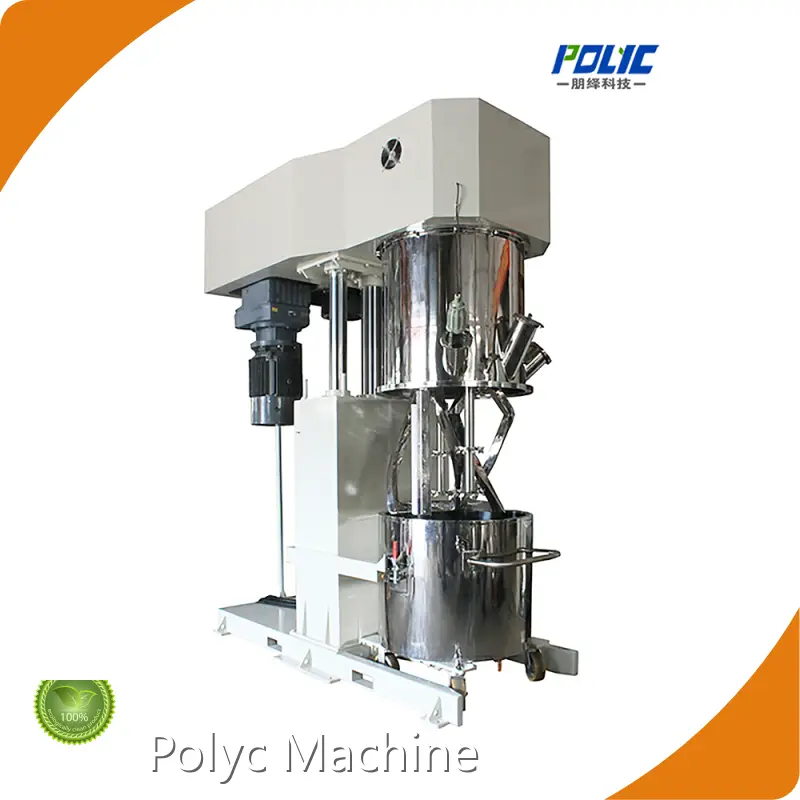

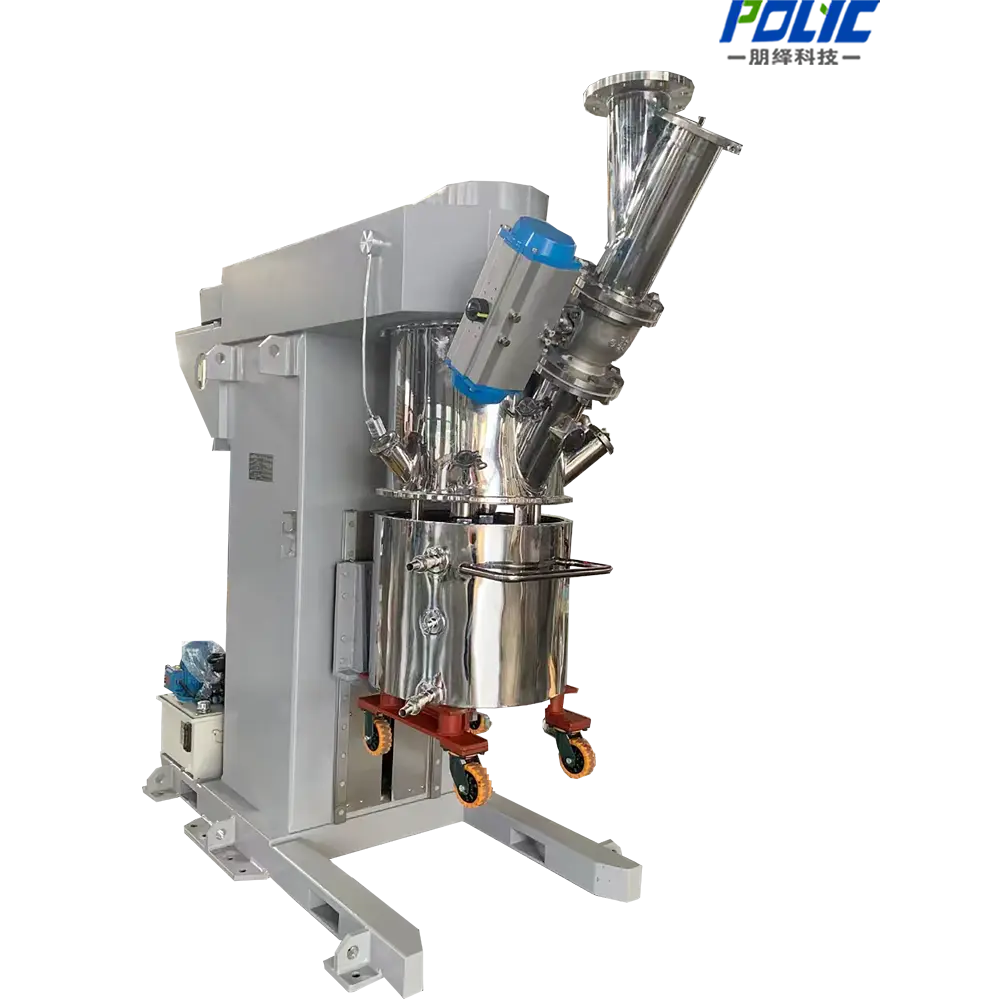

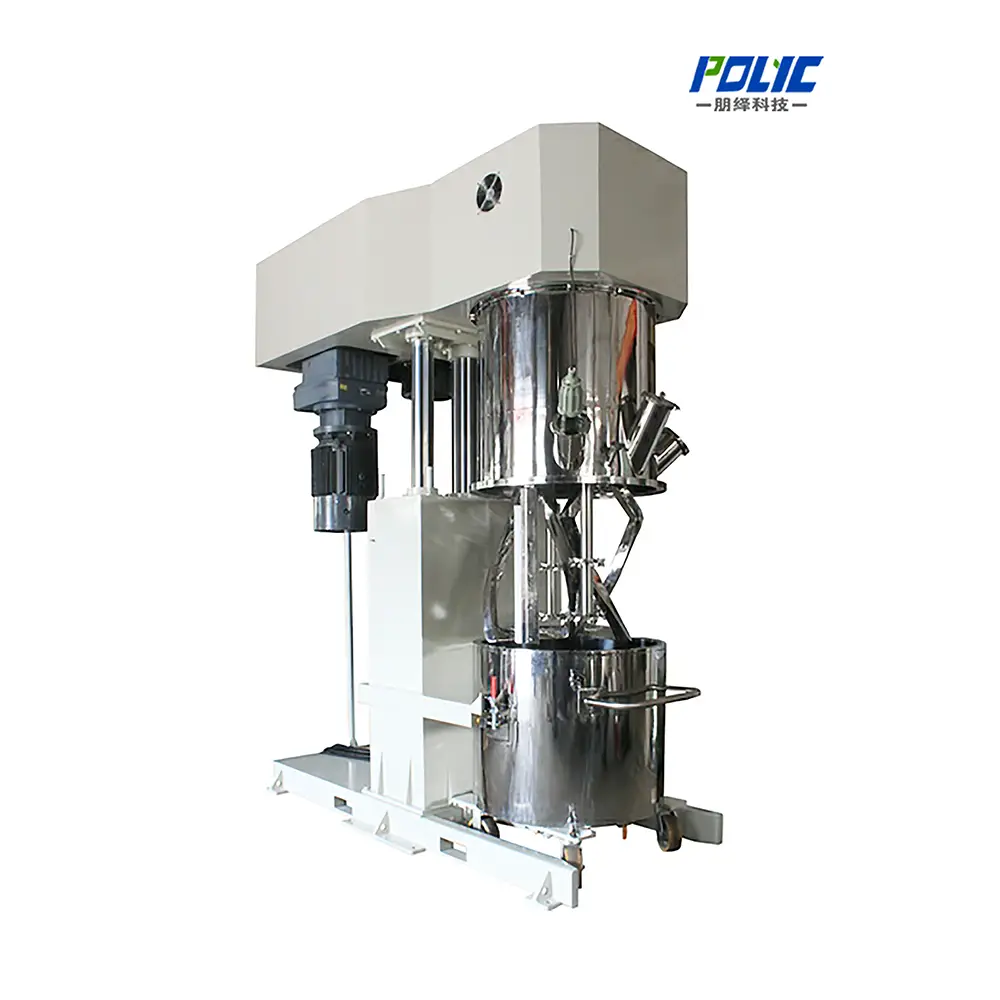

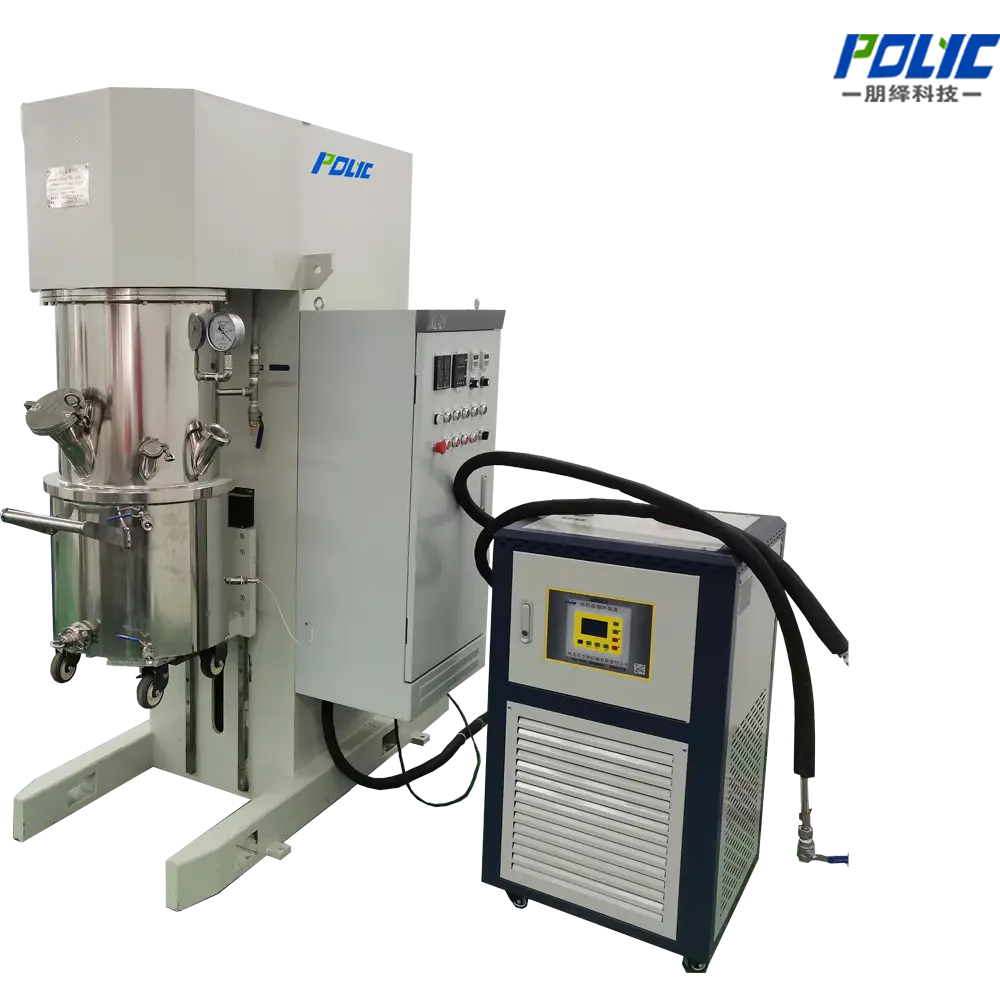

Polyc Machine Production Line Solution Production Line Solution Manufacturers
Company Advantages
· production line solution's excellent characteristics mostly depend on its innovative design.
· Polyc Machine's reputation relies on the strict requirements of high quality.
· Shanghai Polyc Technology Co.,Ltd has formed no-compromise culture with the latest technologies.
Product Features：
● The stirring paddle in the kettle rotates while revolution, which make material flow around, so it can realize mixing (compounding) effect in short time;efficient mixing and kneading, mixing without dead angle, viscosity 0-1.5 million cps;
● Laboratory and industrial grade to 2000L processing capacity can be;
● There are various blades as frame, paddle and twist of dough frame for low speed blade can be chosen.
● Vacuum design ensure material work under sealed environment, Limit negative pressure -0.098-0Mpa, high vacuum retention;
● Heating means of kettle can be electrical heating, steam heating, hot water or oil circulation heating, intelligent temperature director can control temperature precisely.Temperature controllable, accuracy ±1℃, range: 0-220℃;
● Discharge method: extrusion discharge, positive pressure discharge, pump transport;
● Optional: Contact material (304/316L), contact material spraying, electrical control (explosion-proof type, control panel /PLC);
Product Parameters：
|
Parameter/Type |
PMX-02L |
PMX-05L |
PMX-100L |
PMX-200L |
PMX-500L |
PMX-1000L |
|
|
Tank size (Dia.×Dep) |
φ180×120/150 |
φ240/288×180 |
φ600×460/500 |
φ720/750×650 |
φ1000×380 |
φ1250×1000 |
|
|
Capacity(L) |
Full volume |
3/3.8 |
8/11.7 |
130/140 |
265/287 |
650 |
1227 |
|
|
Working volume |
2 |
5 |
100 |
200 |
500 |
1000 |
|
power for dispers (Kw) |
0.37~0.75 |
0.75~2.2 |
4.0~11 |
11~22 |
22~45 |
37~75 |
|
|
dispersing speed on own axis (rpm) |
0-3000 |
0-3000 |
0-3000 |
0-2500 |
0-1500 |
0-960 |
|
|
Power (Kw) |
0.37/0.75 |
0.55/1.5 |
4.0/11 |
5.5/18.5 |
15/37 |
22/55 |
|
|
Agitating speed on own axis (rpm) |
0-100 |
0-100 |
0-100 |
0-80 |
0-60 |
0-50 |
|
|
Orbital/scraping speed (rpm) |
0-60 |
0-60 |
0-60 |
0-50 |
0-40 |
0-30 |
|
|
Vacuum (Mpa) |
-0.098～-0.08 |
-0.098～-0.08 |
|||||
Our Advantages：
REAL MANUFACTUREN
24 HOUR ONLINE
CUSTOMIZABLE
30-45 DAYS FAST DELIVERY
STRICTLY QUALITY CONTROL
3 YEARS WARRANTY
Product Details：
-

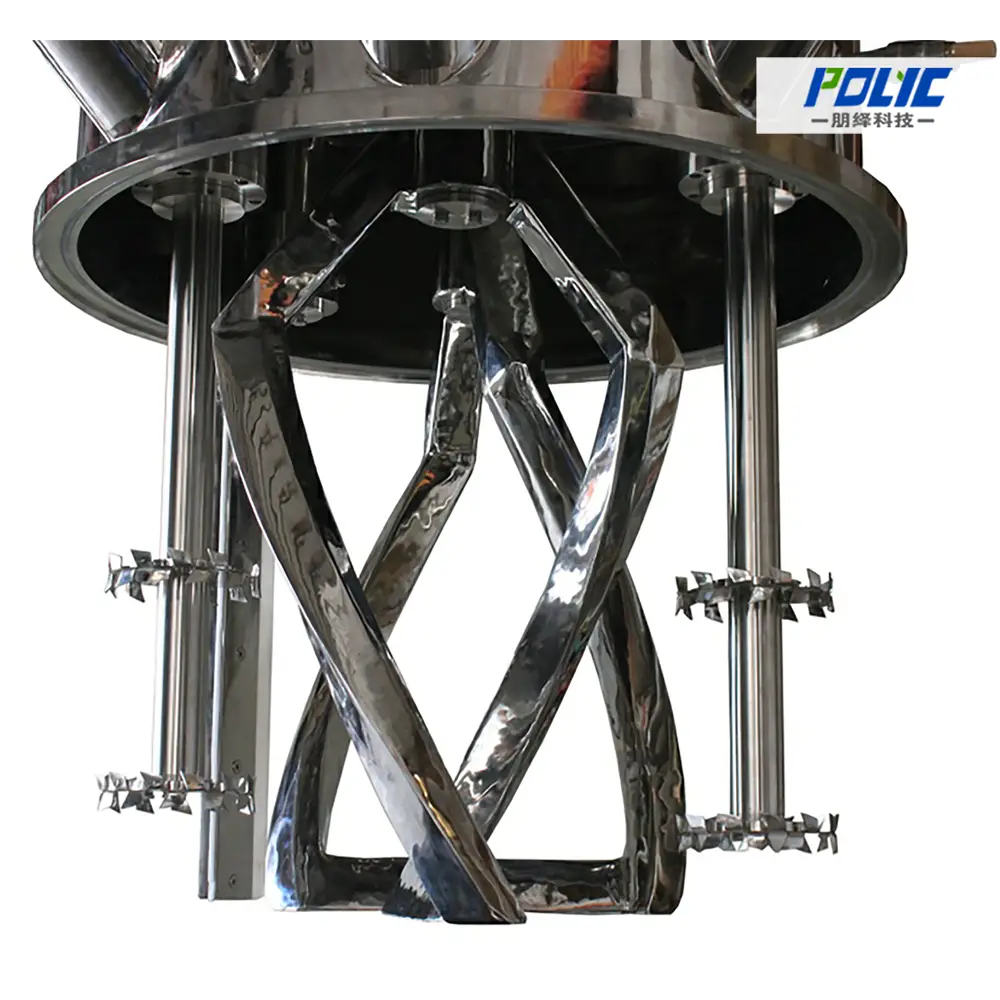

Mixing and Dispersing Shafts
-
Planetary Mixer with Extruder
-
Planetary Mixer with pressing machine
-
Twist blade
Application：
-
Addhesive
-
Car Glue
-
Lithium Paste
-
New composite material
-
Pharmaceuticals industries
-
Plasters
-
Sealant
-
Wall Putty
Project Cases：
Company Features
· Shanghai Polyc Technology Co.,Ltd is a professional manufacturer who is engaged in the development, design, production, and sales of production line solution.
· Dedicated engineers and research teams are available at Polyc Machine to work on products manufacture. Our products have won numerous customers’ trust and support because we have accumulated a large number of experience in the manufacture of production line solution.
· Polyc Machine makes determined decisions to be the leading supplier in production line solution industry. Contact us!
Product Details
The processing of production line solution is carried out with the most advanced technology in the industry to ensure that the following details are better.
Application of the Product
production line solution, one of Polyc Machine's main products, is deeply favored by customers. With wide application, it can be applied to different industries and fields.
In addition to high-quality products, Polyc Machine also provides effective solutions based on the actual conditions and the needs of different customers.
Product Comparison
Polyc Machine's production line solution gains a high market share for the following advantages.
