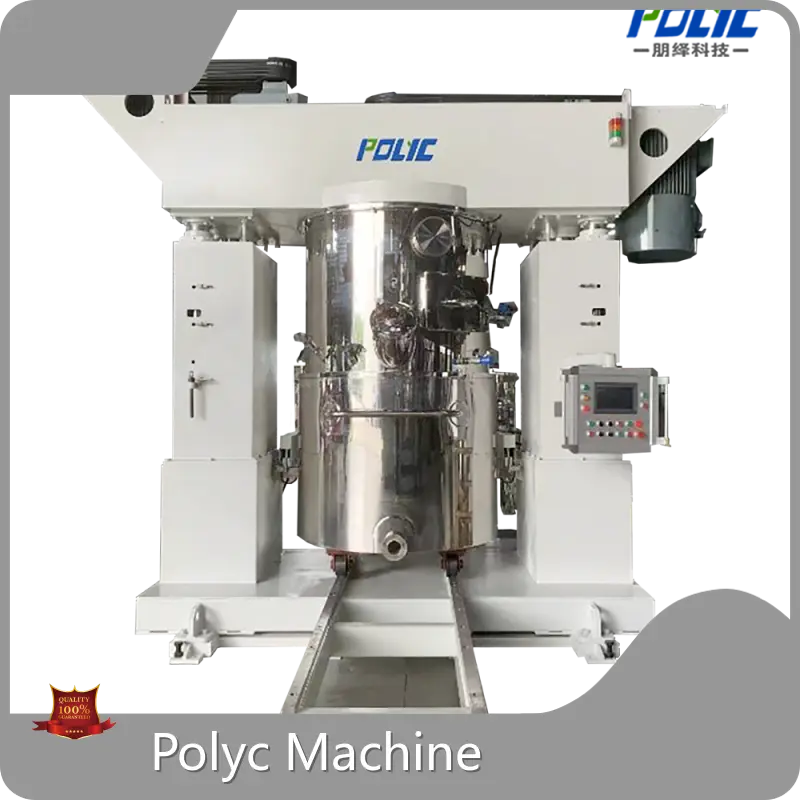

Polyc Machine Planetary Mixer Suppliers
Product details of the planetary mixer
Product Description
High-performance raw materials make Polyc Machine planetary mixer be the perfect one. It will go through multiple processes to make quality guaranteed before loading. Shanghai Polyc Technology Co.,Ltd always puts great importance on outer packing of planetary mixer to ensure quality.
Product Features：
● The stirring paddle in the kettle rotates while revolution, which make material flow around, so it can realize mixing (compounding) effect in short time;efficient mixing and kneading, mixing without dead angle, viscosity 0-1.5 million cps;
● Laboratory and industrial grade to 2000L processing capacity can be;
● There are various blades as frame, paddle and twist of dough frame for low speed blade can be chosen.
● Vacuum design ensure material work under sealed environment, Limit negative pressure -0.098-0Mpa, high vacuum retention;
● Heating means of kettle can be electrical heating, steam heating, hot water or oil circulation heating, intelligent temperature director can control temperature precisely.Temperature controllable, accuracy ±1℃, range: 0-220℃;
● Discharge method: extrusion discharge, positive pressure discharge, pump transport;
● Optional: Contact material (304/316L), contact material spraying, electrical control (explosion-proof type, control panel /PLC);
Product Parameters：
|
Parameter/Type |
FXJ-02L |
FXJ-05L |
FXJ-100L |
FXJ-200L |
FXJ-500L |
FXJ-1000L |
|
|
Tank size (Dia.×Dep) |
φ180/120×150 |
φ240/288×180 |
φ600×460/500 |
φ720/750×650 |
φ1000×380 |
φ1250×1000 |
|
|
Capacity(L) |
Full volume |
3/3.8 |
8/11.7 |
130/140 |
265/287 |
650 |
1227 |
|
|
Working volume |
2 |
5 |
100 |
200 |
500 |
1000 |
|
Power (Kw) |
0.37~0.75 |
0.55~1.5 |
4~11 |
7.5~15 |
15~37 |
30~55 |
|
|
Agitating speed on own axis (rpm) |
0-100 |
0-100 |
0-100 |
0-80 |
0-60 |
0-50 |
|
|
Orbital/scraping speed (rpm) |
0-60 |
0-60 |
0-60 |
0-50 |
0-40 |
0-30 |
|
|
Raising/lowering stroke (mm) |
220 |
270 |
560 |
750 |
930 |
1100 |
|
|
Vacuum (Mpa) |
-0.098～-0.08 |
-0.098～-0.08 |
|||||
Our Advantages：
REAL MANUFACTUREN
24 HOUR ONLINE
CUSTOMIZABLE
30-45 DAYS FAST DELIVERY
STRICTLY QUALITY CONTROL
3 YEARS WARRANTY
Product Details：
-
-
-
-
Can customize with different shape blade
Application：
-
Addhesive
-
Car Glue
-
Lithium Paste
-
New composite material
-
Pharmaceuticals industries
-
Plasters
-
Sealant
-
Wall Putty
Project Cases：
Company Feature
• To guarantee the high quality production, our company has established a skilled team with modern enterprise quality. During the production, our team members are focusing on their own duties.
• The place where our company is located has a good view. It also owns a convenient transportation for delivery.
• With high-quality products and good reputation, our company not only sell products domestically but also exports them to various regions abroad.
• Polyc Machine not only produces high-quality products but also provide professional after-sales services.
We are committed to guaranteeing the product quality and after-sales service. Welcome to contact us for cooperation!
