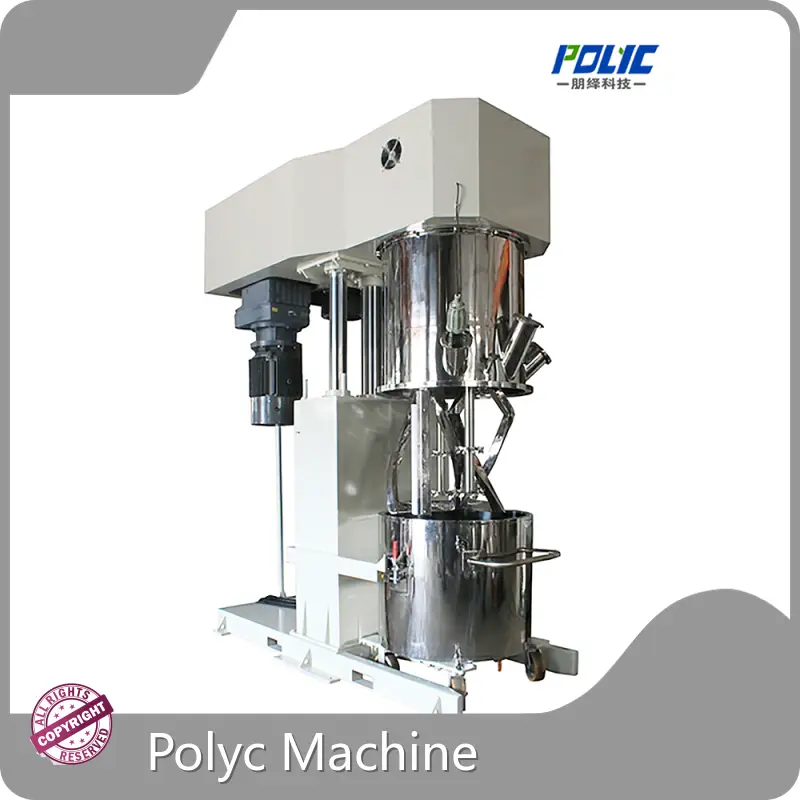

Polyc Machine High Viscosity Mixer Suppliers
Product details of the high viscosity mixer
Product Information
Polyc Machine is outstanding by its unique design. Product quality complies with current regulations and standards. Shanghai Polyc Technology Co.,Ltd has perfect QC system and after-sales system to ensure quality and good user experience.
Product Features：
● The stirring paddle in the kettle rotates while revolution, which make material flow around, so it can realize mixing (compounding) effect in short time;efficient mixing and kneading, mixing without dead angle, viscosity 0-1.5 million cps;
● Laboratory and industrial grade to 2000L processing capacity can be;
● There are various blades as frame, paddle and twist of dough frame for low speed blade can be chosen.
● Vacuum design ensure material work under sealed environment, Limit negative pressure -0.098-0Mpa, high vacuum retention;
● Heating means of kettle can be electrical heating, steam heating, hot water or oil circulation heating, intelligent temperature director can control temperature precisely.Temperature controllable, accuracy ±1℃, range: 0-220℃;
● Discharge method: extrusion discharge, positive pressure discharge, pump transport;
● Optional: Contact material (304/316L), contact material spraying, electrical control (explosion-proof type, control panel /PLC);
Product Parameters：
|
Parameter/Type |
PMX-02L |
PMX-05L |
PMX-100L |
PMX-200L |
PMX-500L |
PMX-1000L |
|
|
Tank size (Dia.×Dep) |
φ180×120/150 |
φ240/288×180 |
φ600×460/500 |
φ720/750×650 |
φ1000×380 |
φ1250×1000 |
|
|
Capacity(L) |
Full volume |
3/3.8 |
8/11.7 |
130/140 |
265/287 |
650 |
1227 |
|
|
Working volume |
2 |
5 |
100 |
200 |
500 |
1000 |
|
power for dispers (Kw) |
0.37~0.75 |
0.75~2.2 |
4.0~11 |
11~22 |
22~45 |
37~75 |
|
|
dispersing speed on own axis (rpm) |
0-3000 |
0-3000 |
0-3000 |
0-2500 |
0-1500 |
0-960 |
|
|
Power (Kw) |
0.37/0.75 |
0.55/1.5 |
4.0/11 |
5.5/18.5 |
15/37 |
22/55 |
|
|
Agitating speed on own axis (rpm) |
0-100 |
0-100 |
0-100 |
0-80 |
0-60 |
0-50 |
|
|
Orbital/scraping speed (rpm) |
0-60 |
0-60 |
0-60 |
0-50 |
0-40 |
0-30 |
|
|
Vacuum (Mpa) |
-0.098～-0.08 |
-0.098～-0.08 |
|||||
Our Advantages：
REAL MANUFACTUREN
24 HOUR ONLINE
CUSTOMIZABLE
30-45 DAYS FAST DELIVERY
STRICTLY QUALITY CONTROL
3 YEARS WARRANTY
Product Details：
-
Mixing and Dispersing Shafts
-
Planetary Mixer with Extruder
-
Planetary Mixer with pressing machine
-
Twist blade
Application：
-
Addhesive
-
Car Glue
-
Lithium Paste
-
New composite material
-
Pharmaceuticals industries
-
Plasters
-
Sealant
-
Wall Putty
Project Cases：
Company Feature
• The traffic convenience and advantageous geographic location create a broad prospect for Polyc Machine's business development.
• Our company has established a perfect pre-sales and after-sales service system. As a result, we can effectively protect the consumers' rights and interests and provide quality products and services for consumers.
• Senior experts are recruited to be consultants for our company, and they are always ready to answer questions for customers. In addition, our company has high-tech equipment and strong scientific research strength. All that provides strong technical support for the development of our high-tech products.
• Polyc Machine's Bead Mill,Basket Mill,Disperser,Inline Disperser,Industrial Mixer,High Shear Emulsifier,Mixing Kettles,Mixing Kettle & Reactor,Production Line are sold well in all parts of the country. They are of good quality and affordable price, which are deeply favored by the majority of customers.
Our products are all qualified and are sold directly from factory. Welcome friends from all walks of life to contact and consult us.
