Polyc Machine Chemical Making Machine Chemical Making Machine Supply
Company Advantages
· Polyc Machine chemical making machine is manufactured using the best quality raw material and cutting edge technology under the guidance of skilled professionals.
· The product has never failed in the aspects of long-lasting performance and durability.
· The integrity, strength and quality products of Shanghai Polyc Technology Co.,Ltd is recognized by the industry.
Product Features：

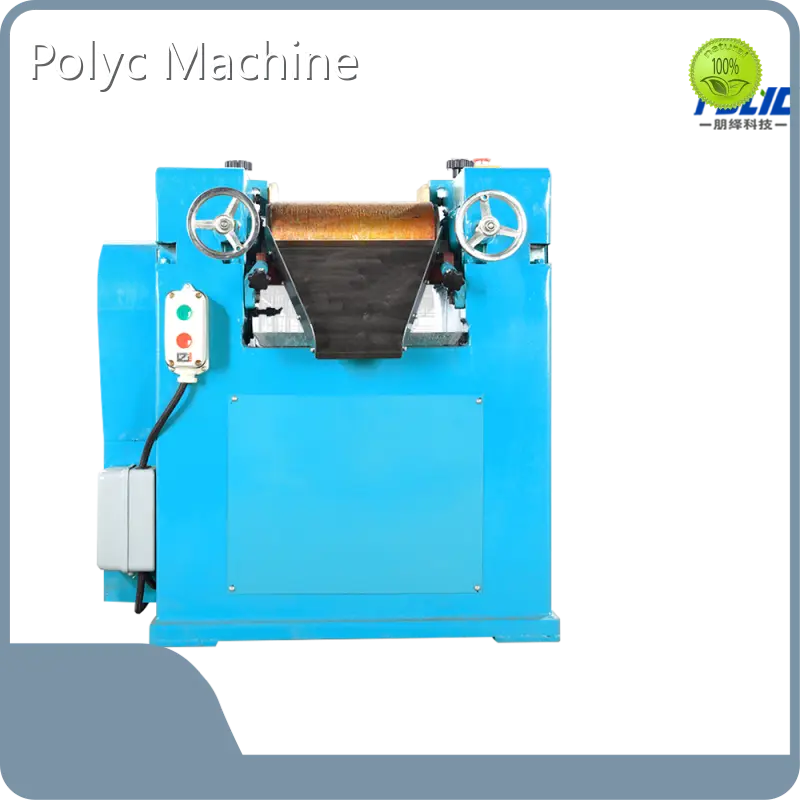

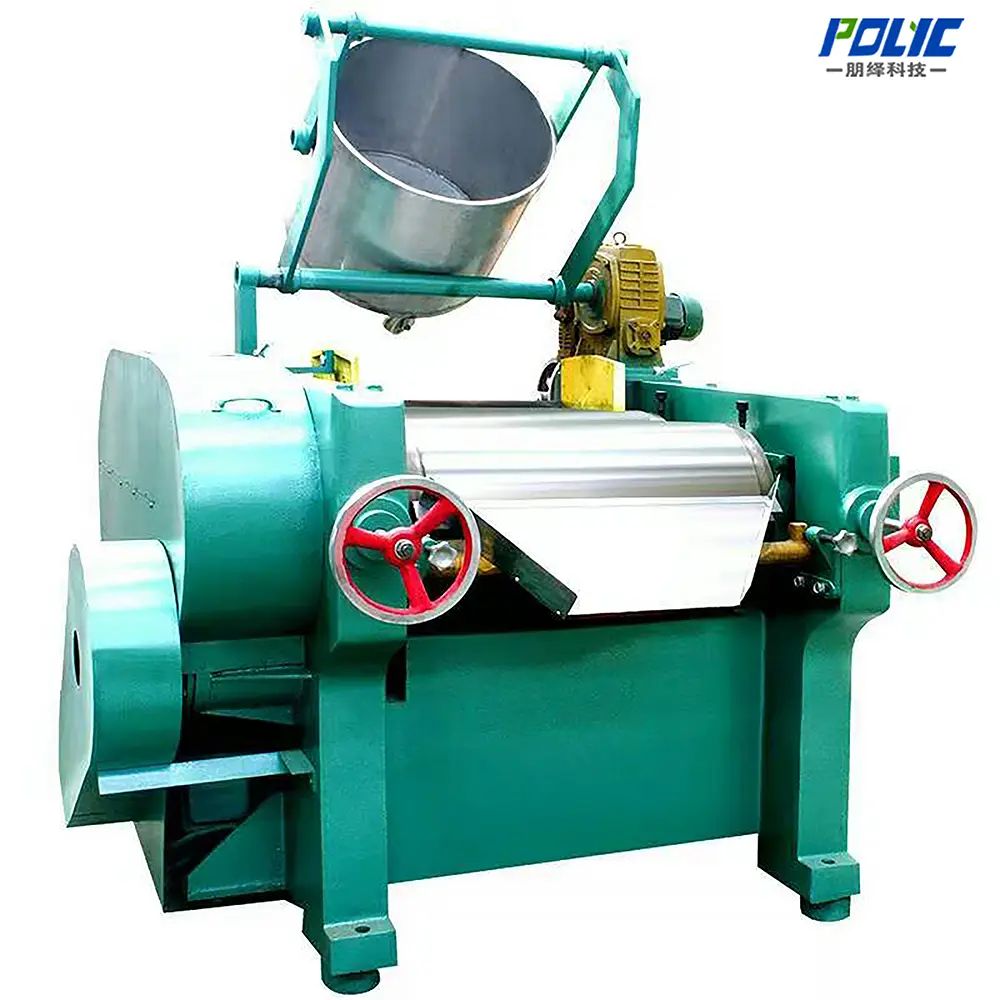

The PTM Triple-roller mill can be designed as per materials viscosity to be suitable for materials with high viscosity. mid viscosity. low viscosity respectively. A little rise in temperature, stable quality of the finished product. Excellent cooling results can be achieved by inputting cooling water into the roller when the machine is running. Normally the temperature increase will be less than 10C. And the quality of the finished products is ensured. Customized options. The machine can be an Ex-proof type. The roller material can be Ceramics material such as zirconium, aluminum oxide etc.
The working principle of the Triple -roller mill: The equipment consists of three rollers fixed on the frame and driven directly by the motor. The rotation direction between rollers is generally different, the former roller rotates forward, the rear roller rotates backward. The speed of the former roller is quick, while the speed of the rear roller is slow. The mid roller is fixed, former and rear rollers are mounted on the slide with a spring device. Adjust the distance between three rollers by handwheel. The material, charged from the space between the rear roller and middle roller, is squeezed by the rollers to obtain a smaller particle size. Then the material is rolled out by the fast roll (Roll rotates at high speed). The scrapper at the end of the fast roller separates materials from the roller and falls into the collection barrels.
Product Parameters：
|
Parameter |
Roller diameter |
Working length |
Speed |
Motor power |
Dimension |
Weight |
||
|
Model |
mm |
(mm) |
Slow |
Middle |
Fast |
Kw |
mm |
KG |
|
PTM150 |
150 |
300 |
26 |
78 |
205 |
2.2 |
980x750x915 |
500 |
|
PTM260 |
260 |
675 |
24 |
68.5 |
195 |
7.5 |
1750x1400x1180 |
2000 |
|
PTM406 |
406 |
810 |
16 |
48 |
145 |
15 |
2100x1900x1360 |
5300 |
|
PZM406L |
406 |
1000 |
16 |
48 |
145 |
22 |
2350x1778x1320 |
5800 |
Our Advantages：
REAL MANUFACTUREN
24 HOUR ONLINE
CUSTOMIZABLE
30-45 DAYS FAST DELIVERY
STRICTLY QUALITY CONTROL
3 YEARS WARRANTY
Application：
-
Coating
-
Cosmetic
-
Dyes
-
Ink
-
Leather Paste
-
Paint
-
Printing ink
-
PVC Paste
Project Cases：
Company Features
· Through introducing advanced technology, the strength of Polyc Machine is the first rate in producing chemical making machine.
· Shanghai Polyc Technology Co.,Ltd is scientifically and technologically advanced. The cutting edged technology of Shanghai Polyc Technology Co.,Ltd is internationally recognized. Shanghai Polyc Technology Co.,Ltd's technology strength ranks top in the chemical making machine industry.
· Our objective is to provide value-added chemical making machine and services to our clients.
Application of the Product
Polyc Machine's chemical making machine can be used in different fields.
In addition to providing high-quality products, we also provide effective solutions based on the actual conditions and the needs of different customers.
Product Comparison
Our chemical making machine has a certain share in the market because of the following characteristics.
Enterprise Advantages
Polyc Machine has a professional R&D expert team and a high-quality staff team. The team members' great production capabilities make a contribution to our company's rapid development.
Our company not only pays attention to the sales of products, but also tries our best to meet the diversified needs of customers. Our goal is to bring consumers a relaxing and enjoyable experience.
Polyc Machine always persists in the management philosophy of 'quality first, credit first, and service first', and aims to become an influential company with the corporate spirit of 'integrity, responsibility, solidarity and striving for the first'.
After the official establishment in our company has continuously explored and developed for years. Now, we have accumulated a large amount of management experience to guide our daily business activities.
Polyc Machine's Bead Mill,Basket Mill,Disperser,Inline Disperser,Industrial Mixer,High Shear Emulsifier,Mixing Kettles,Mixing Kettle & Reactor,Production Line are favored and supported by the market, with an annual increment of market share. They are not only sold well in various regions of the country, but also exported to different foreign countries.
