Industrial Mixer Machine Products Wholesale - Polyc Machine
Product details of the industrial mixer machine
Quick Overview
All of our Polyc Machine industrial mixer machine comply with the latest industry standards. We implements strict checks to ensure the impeccable quality of this product. While provided by factory directly, it is really cost effective.
Product Description
Compared with similar products in the market, the industrial mixer machine of Polyc Machine has the following main advantages.
Application Industry:
Suitable for the mixing of pharmacy, food, pesticide, dye, chemical industry, plastic, lithium battery, ceramic, chemical fertilizer, rubber, mortar and etc.
Applicable Materials:
Powders with fluidity whose specific gravity is up to 3g/cm³, such as milk powder, food activities, organic chemical fertilizer, dry powder mortar, specific building materials, antiflame materials and etc.

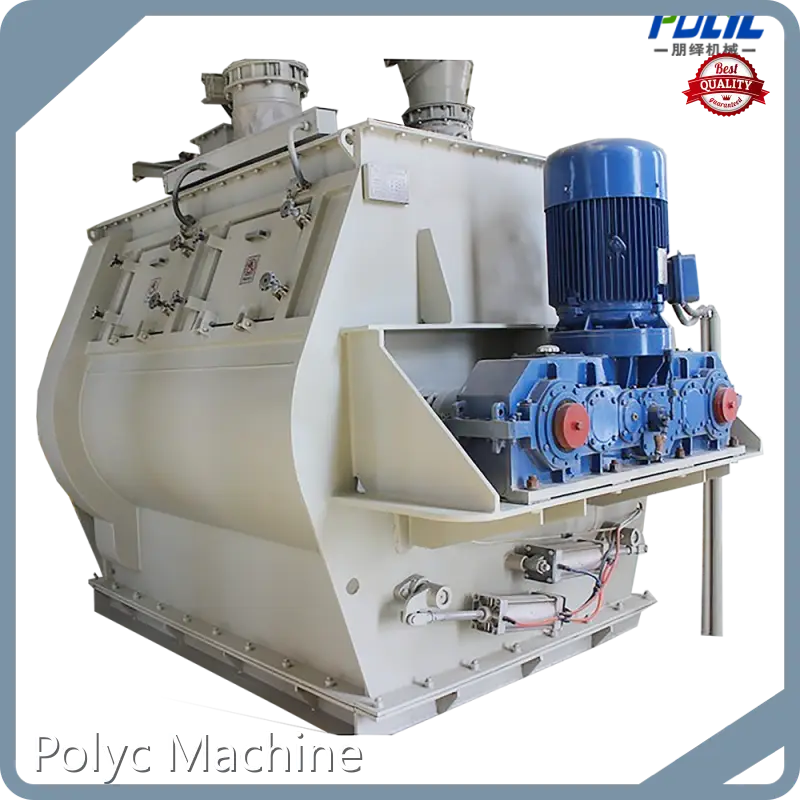

Advantages of the Horizontal non-gravity mixer:
1. Manual, electric and pneumatic options with various discharge types are available.
2. The high-speed rotating cutter installed has the function of rapidly dispersing fibers.
3. The meteorological balance device makes the mixing more uniform.
4. The combined blade structure significantly reduces maintenance costs.
5. The large-opening discharge reduces the dead zones in the mixer and makes the discharging cleaner and faster.
6. It can be used for solid-solid (powder and powder) mixing, solid-liquid (powder and liquid) mixing and drying operations.
7. The mixing speed is fast, and the general powder mixing only takes about 2-3 minutes.
8. It can be operated in a sealed manner, with reliable operation and convenient maintenance.
Working Principle:
The Horizontal non-gravity mixer makes full use of the principle of convection mixing. Inside the chamber, there are two sets of blades rotating in opposite directions. Each blade has been scientifically calculated to obtain reasonable spacing and angle values. The rotation of the blades throws the materials into the spatial flow layer, causing a momentary loss of gravity. They fall into each other's areas, and an agitated loss zone and rotating vortex form in the middle layer. A flow layer is formed at the bottom of the mixer, and the materials exhibit three-dimensional compound motion, thereby achieving a comprehensive and rapid uniform mixing effect. This equipment is suitable for drying and mixing of chemicals, metallurgy, construction, coatings, resins, pesticides, feed, and powder materials.
Technical Parameters:
| Model | Full Volume m³ | Loading coefficient | Power kw | Speed r/min |
| PYZL-1.0 | 1.0 | ≤0.6 | 11 | 43 |
| PYZL-2.0 | 2.0 | ≤0.6 | 18.5 | 43 |
| PYZL-3.0 | 3.0 | ≤0.6 | 22 | 38 |
| PYZ-4.0 | 4.0 | ≤0.6 | 30 | 38 |
| PYZ-6.0 | 6.0 | ≤0.6 | 45 | 34 |
| PYZ-8.0 | 8.0 | ≤0.6 | 55 | 29 |
| PYZ-10.0 | 10.0 | ≤0.6 | 75 | 29 |
| PYZ-12.0 | 12.0 | ≤0.6 | 90 | 29 |
| PYZ-15.0 | 15.0 | ≤0.6 | 110 | 26 |
√ The above listed Max. processing capacity is calculated as per powder with specific gravity 1 as medium. The model selection should depend on the comprehensive factors such as materials viscosity, specific gravity etc.
√ We can’t list all volumes, can also customize according to customer’s special requirement, you can contact us with more details then we work on suitable solution for you
Our Advantages：
Product Details：
Application：
Company Introduction
Shanghai Polyc Technology Co.,Ltd, located in shang hai, is a modern enterprise with complete supply chain. We are engaged in R&D, production, processing, logistics and sales. Bead Mill,Basket Mill,Disperser,Inline Disperser,Industrial Mixer,High Shear Emulsifier,Mixing Kettles,Mixing Kettle & Reactor,Production Line are key products. Our company provides excellent service for all customers in the principle of 'customer first'. Our products are reliable in quality, various in type and affordable in price. Customers in need are welcomed to contact us. We sincerely hope to reach friendly cooperation, common development and mutual benefit with you!
