Product details of the chemical reactor price
Product Description
Polyc Machine chemical reactor price is designed by our experienced designers that are leaders in the industry. This product performance is superior, the service life is long, enjoys the high prestige in the international. We are always keeping developing new kind of chemical reactor price.
Product Features：
1.The PDK Electrical Heating Reactor is a fast, high-capacity dispersing reactor with a wide range of speeds and a high level of efficiency

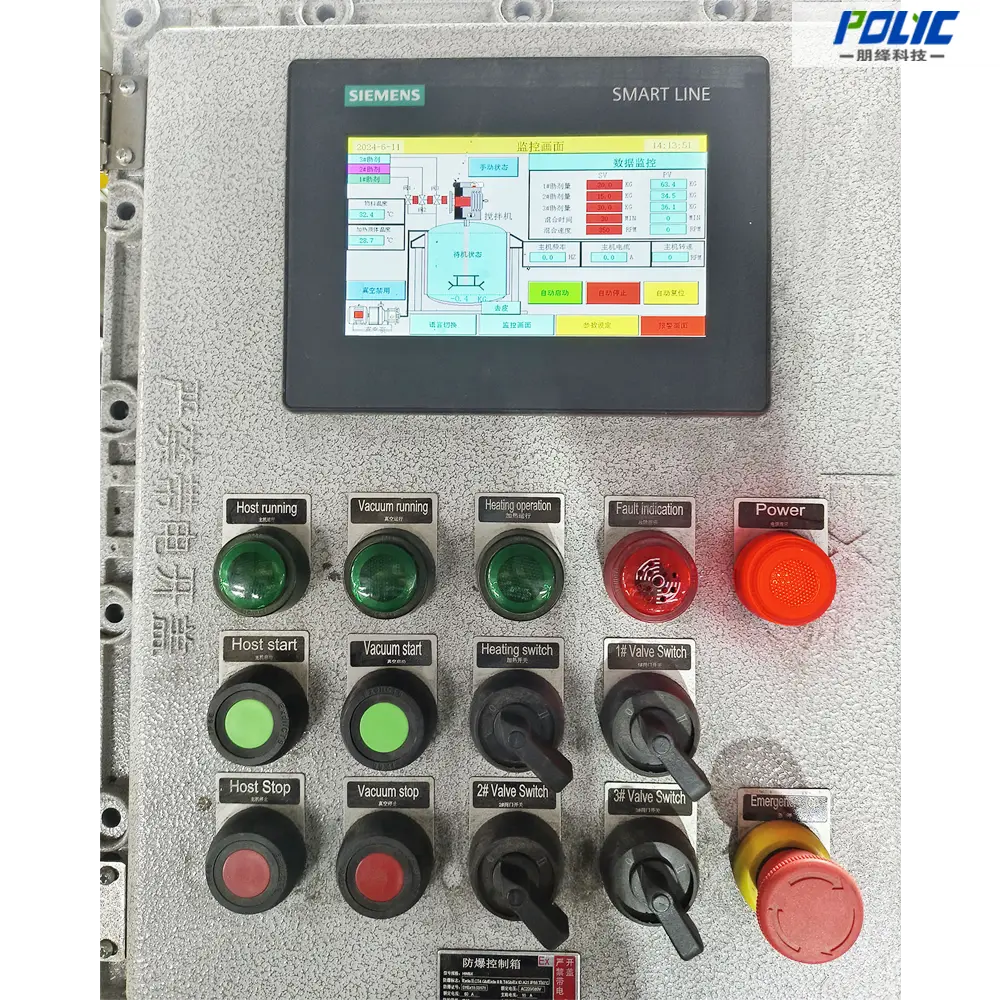

2.Can be equipped with on-site operation box and PLC system with loading cells.

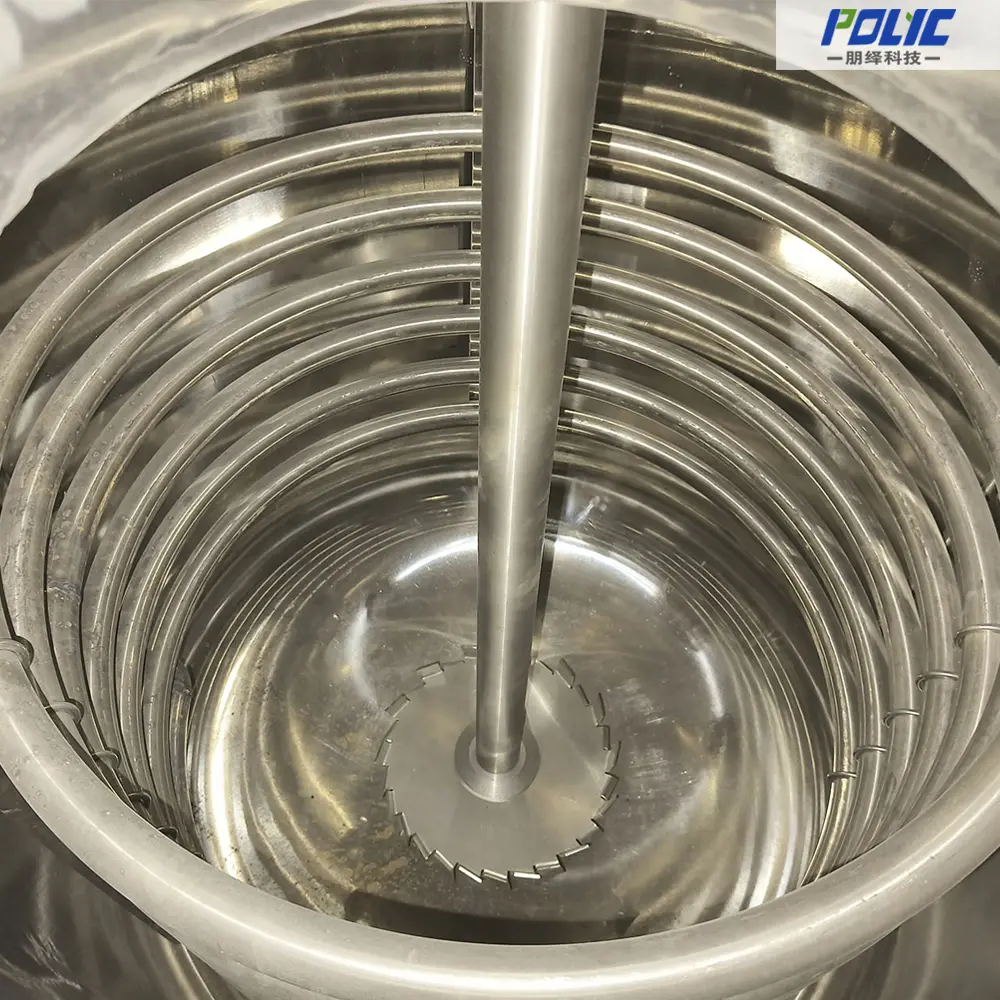

3.The product is accelerated radially by the high speed dispersing disk, deflected to the top and bottom at the tank wall and directed back to the dispersion disk through the formation of a vortex
4.Shear forces around the circumference of the toothed disk result in highly efficient dispersion, good wetting and deagglomeration
5.Equipped with electrical heating system and vacuum system, with 6pcs 4kW electrical heating bar to heat oil, inside of the reactor with pipe for connect cooling water have cooling function, outside with insulating layer.
Product Parameters：
|
Parameter |
Capacity |
Dispersing power |
Dispersing speed |
|
Model |
M³ |
kW |
rpm |
|
PDK-0.5 |
0.5 |
11 |
0 - 1450 |
|
PDK-1 |
1 |
15 |
0 - 1450 |
|
PDK-2 |
2 |
30 |
0 - 1450 |
|
PDK-3 |
3 |
37 |
0 - 1450 |
|
PDK-5 |
5 |
55 |
0 - 1450 |
|
PDK-8 |
8 |
90 |
0 - 1000 |
|
PDK-10 |
10 |
110 |
0 - 1000 |
Technical Drawing：
Product Details：
Application：
-
Coating
-
Ink
-
Paint
-
Plasters
-
Sealants
-
Textured Coating
-
Wall Putty
-
Waterproof Paint
|
Requirements |
The customer ask we customize the reactor for mixing components, polyol , iso and diluent added in the same time plus acid .. temperature to maintain at 80℃. The reactors can be used for other PU adhesive or applications 500 liters capacity. And need 760 rpm. |
|
Country: Malaysia |
|
|
Requirements |
The customer asked we customize1000L Electrical Heating Reactor |
|
Country: UAE |
|
|
Requirements |
The customer produces Floor Paint and ask we customize 500 liters reactor |
|
Country: Turkey |
|
|
Requirements |
The customer produces fire-proofing materials and they need 1000 liters reactor and temperature to maintain at 120℃. |
|
Country: Korea |
|
