Product details of the chemical production equipment
Product Introduction
The application of the advanced technology has made Polyc Machine chemical production equipment more perfect on appearance. The product has an extremely long service life through high-intensity detection. Shanghai Polyc Technology Co.,Ltd adheres to the cooperation with domestic and foreign customers with the purpose of 'consistent with the contract'.
Product Features：

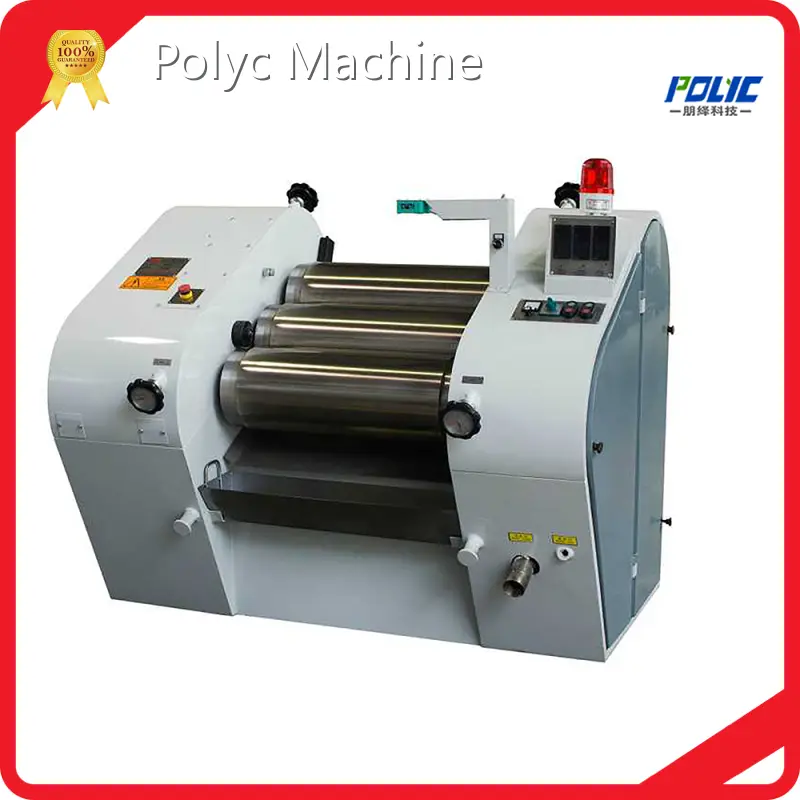

PHM Triple-roller mill adapts three rollers grinder controlled by hydraulic pressure from double-impeller pump. The basic work of machine such as feeding, discharging and size of material is controlled by hydraulic pressure. It features high automatization content, convenient to operate and in use.
The working principle of the Triple -roller mill: The equipment consists of three rollers fixed on the frame and driven directly by the motor. The rotation direction between rollers is generally different, the former roller rotates forward, rear roller rotates backward. The speed of former roller is quick, while speed of rear roller is slow. The mid roller is fixed, former and rear rollers are mounted on the slide with spring device. Adjust the distance between three rollers by hand wheel. The material, charged from space between rear roller and middle roller, are squeezed by the rollers to obtain smaller particle size. Then the material are rolled out by the fast roll (Roll rotates at high speed). The scrapper at the end of the fast roller separate materials from the roller and fall into the collection barrels.
Product Parameters：
|
Parameter |
Roller diameter |
Working length |
Motor power |
Dimension |
Hydraulic |
Hydraulic system |
Weight |
|
Model |
mm |
(mm) |
Kw |
mm |
Kw |
Pma |
KG |
|
PHM400 |
400 |
1300 |
55 |
2634x1750x2295 |
1.5x2 |
6.3x2 |
5200 |
|
PHM400 |
400 |
1300 |
55 |
2634x1750x1600 |
1.5 |
6.3 |
4800 |
|
PHM260 |
260 |
650 |
22 |
1600x1280x1260 |
1.5 |
6.3 |
2000 |
|
PHM150 |
150 |
300 |
3 |
950x950x1080 |
0.375 |
6.3 |
520 |
Our Advantages：
REAL MANUFACTUREN
24 HOUR ONLINE
CUSTOMIZABLE
30-45 DAYS FAST DELIVERY
STRICTLY QUALITY CONTROL
3 YEARS WARRANTY
Application：
-
Coating
-
Cosmetic
-
Dyes
-
Ink
-
Leather Paste
-
Paint
-
Printing ink
-
PVC Paste
