Chemical Making Machine by Polyc Machine
Product details of the chemical making machine
Product Overview
Polyc Machine chemical making machine is manufactured under improved production process and advanced production technology. The quality of this product is guaranteed with the assistance of our vast expertise and immerse knowledge in this domain. Shanghai Polyc Technology Co.,Ltd keeps carrying out innovations in the technology of chemical making machine.
Product Introduction
Compared with other similar products, our chemical making machine has more advantages, specifically in the following aspects.
Product Features：

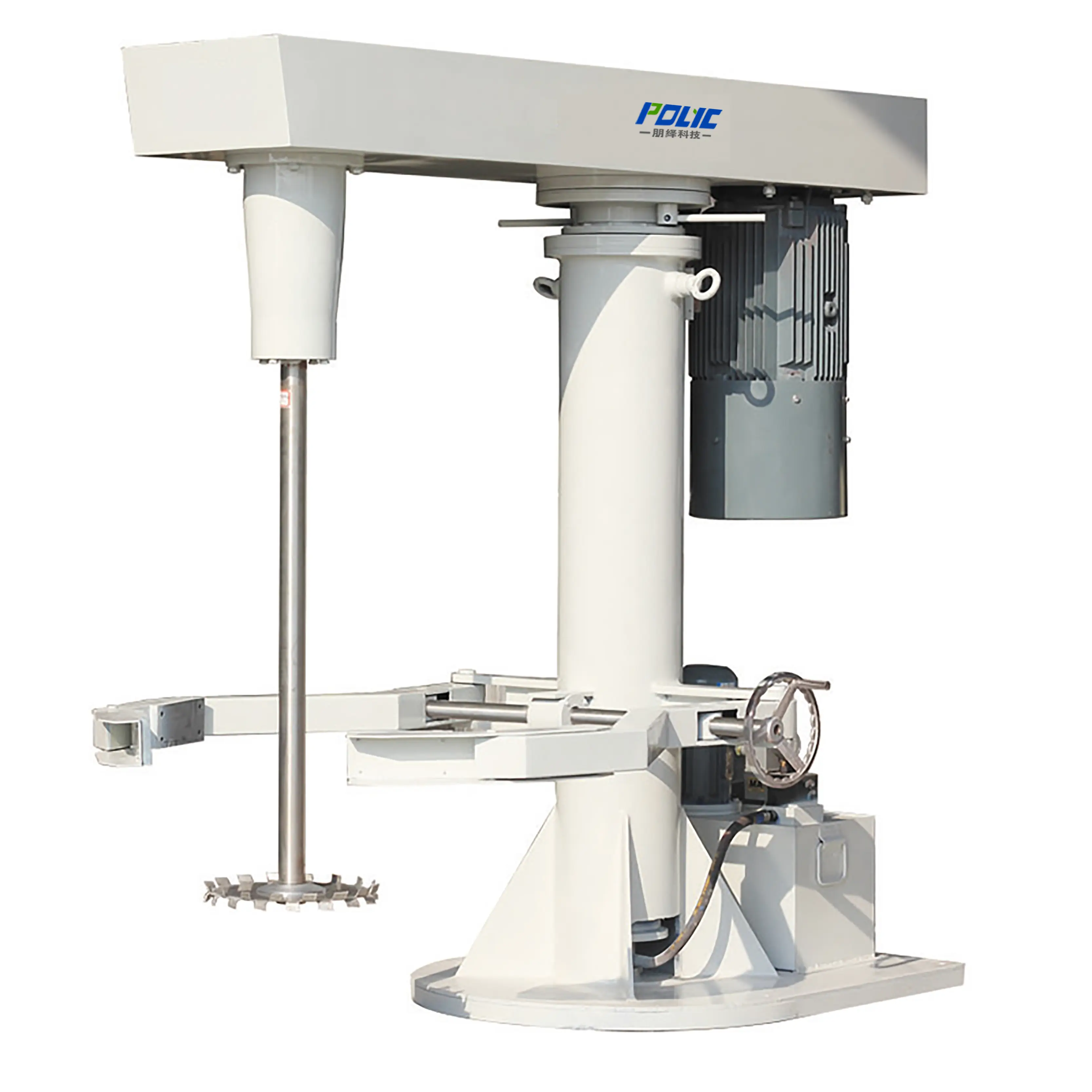

● The PDMHigh Speed Disperser is a fast, high-capacity disperser with a wide range of speeds and a high level of efficiency
● Push-button speed control
● Speed indicator and automatic speed reduction
● The product is accelerated radially by the Single Shaft Disperser’s dispersing disk, deflected to the top and bottom at the tank wall and directed back to the dispersion disk through the formation of a vortex
● Shear forces around the circumference of the toothed disk result in highly efficient dispersion, good wetting and deagglomeration
● For high-viscosity products, a tank wall scraping device can aid the mixing and dispersing process

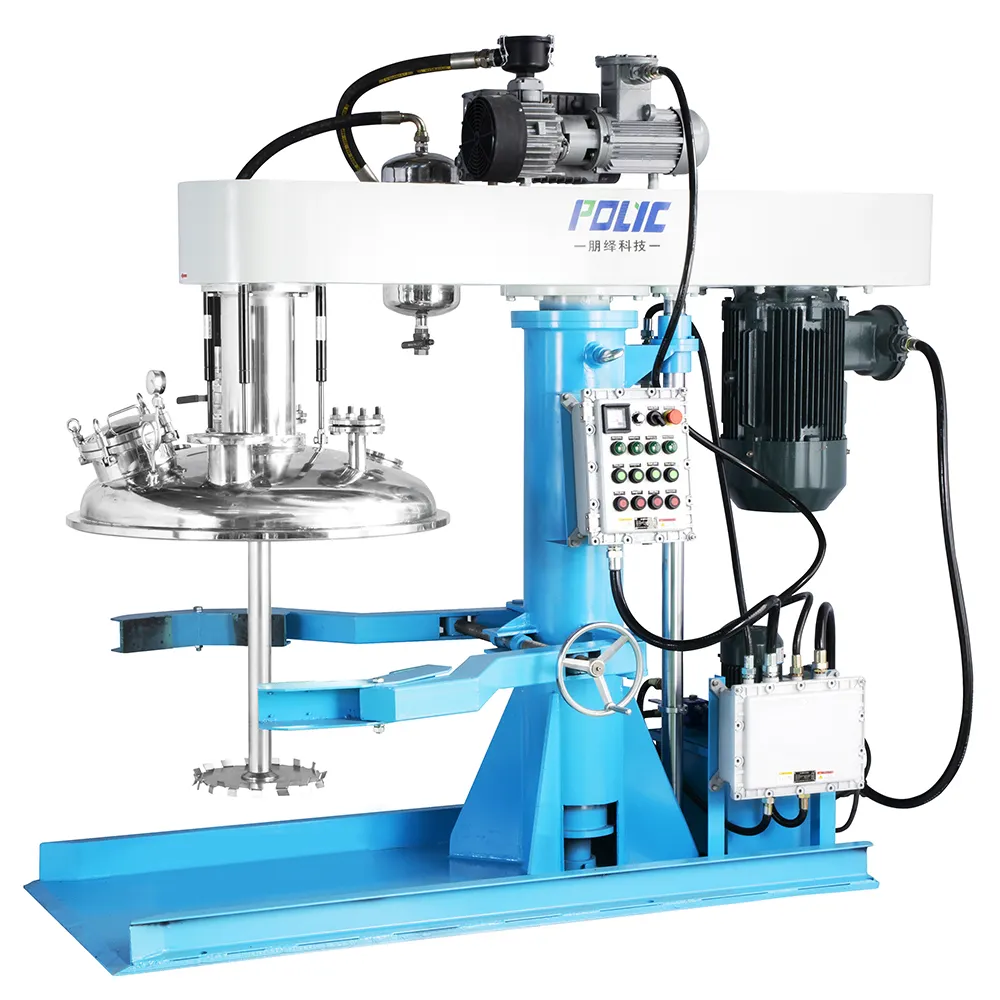

● The Single Shaft Disperser with hydraulic lifting/lowering device
● Adjustable tank clamping mechanism
● Stainless steel shaft and dispersion disk; additional product-specific mixing tools available depending on the application
Product Parameters：
Parameter of The PDM High Speed Disperser Disperser
|
Parameter |
Power |
Speed |
Disc diameter |
Lifting height |
Pump Power |
Handling Capacity |
Weight |
|
Model |
Kw |
rpm |
mm |
L/H |
Kw |
L |
KG |
|
PDM 1.5/2.2 |
1.1/2.2 |
0-1450 |
150 |
600 |
0.55 |
50-100 |
120 |
|
PDM4/5.5 |
4/5.5 |
0-1450 |
200 |
800 |
0.55 |
100-200 |
400 |
|
PDM7.5/11/15 |
7.5/11/15 |
0-1450 |
250 |
900 |
0.75 |
400-600 |
800 |
|
PDM18.5/22/30/37 |
18.5/22/30/37 |
0-1450 |
350/400 |
1200 |
1.1 |
600-2000 |
1700 |
|
PDM45/55 |
45/55 |
0-1200 |
450 |
1300 |
1.5 |
1000-2500 |
2100 |
|
PDM75/90 |
75/90 |
0-1200 |
600 |
1600 |
2.2 |
5000 |
2600 |
Our Advantages：
REAL MANUFACTUREN
24 HOUR ONLINE
CUSTOMIZABLE
30-45 DAYS FAST DELIVERY
STRICTLY QUALITY CONTROL
3 YEARS WARRANTY
Product Details：
-
Dispersing Disc
-

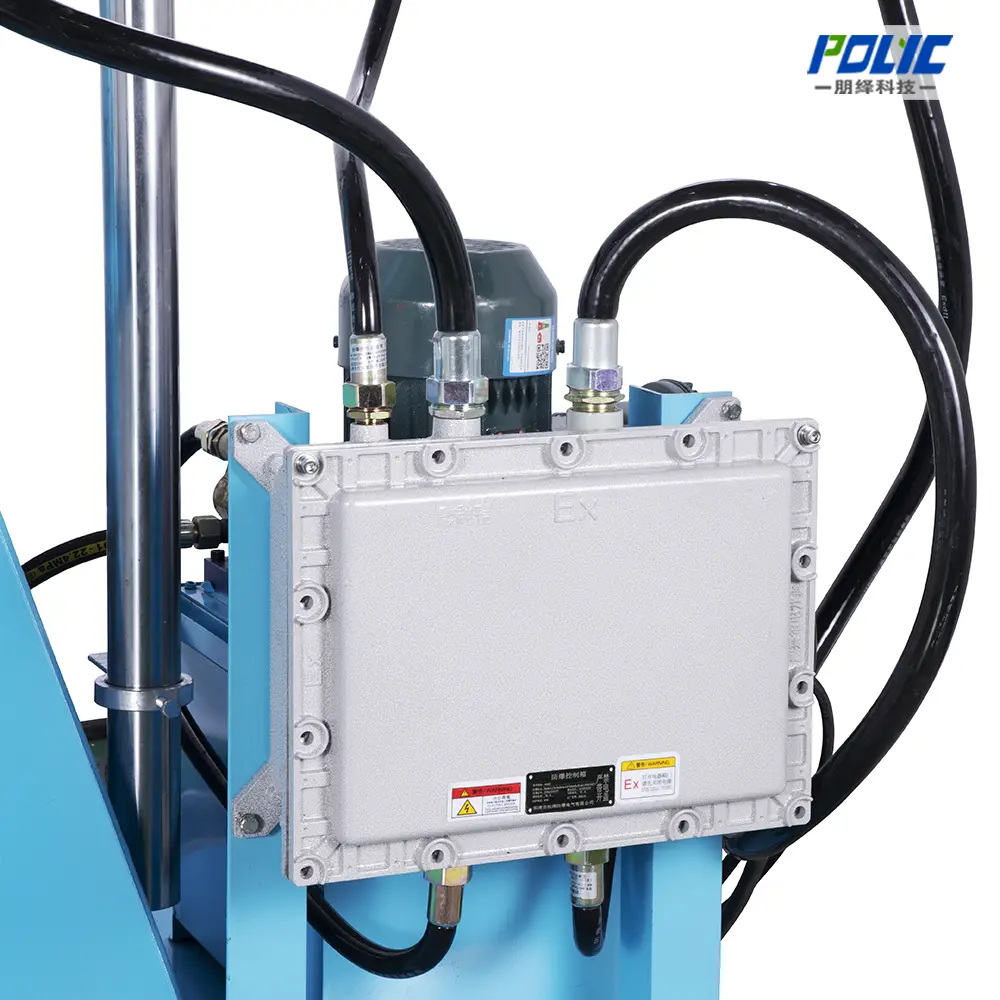

Electrical Junction Box
-

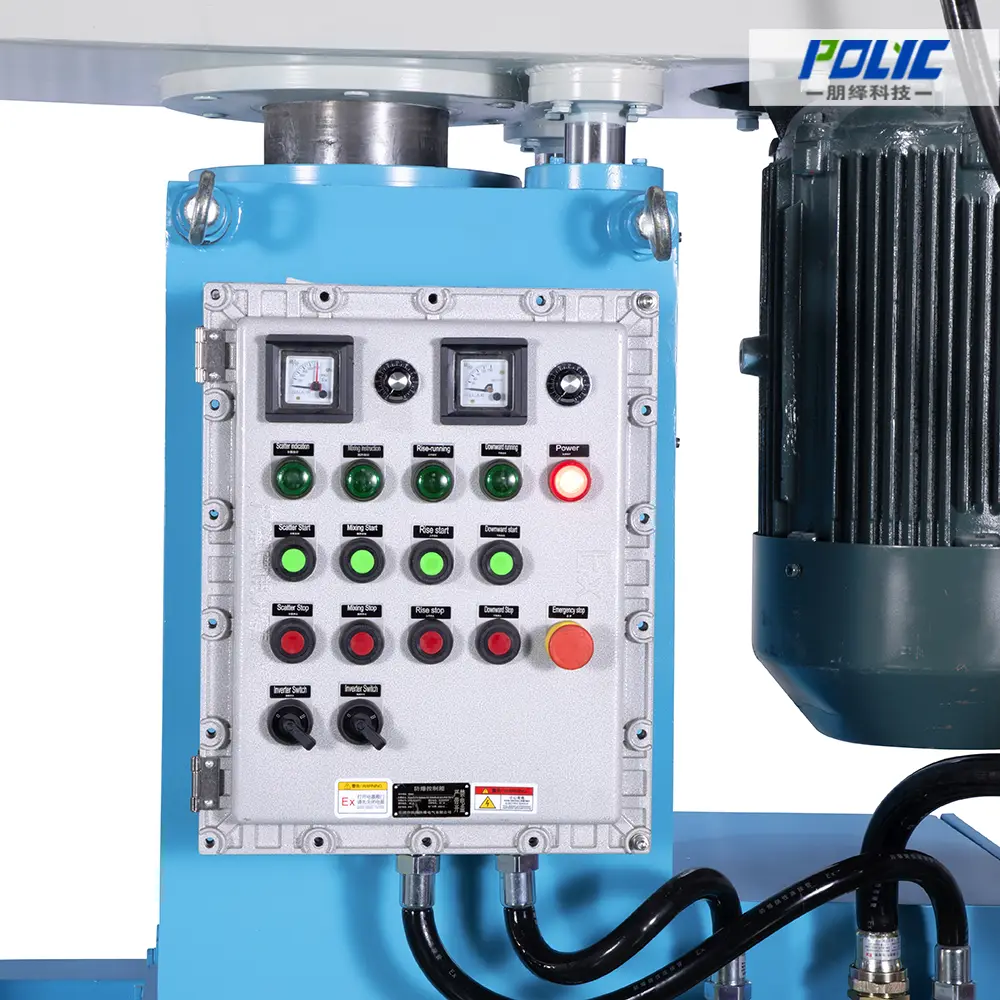

Ex-proof Operation Panel
-
Tank Fixed Cover
Application：
-
Coating
-
Cosmetic
-
Dyes
-
Glue
-
Ink
-
Paint
-
Printing ink
-
Sealant
Company Advantages
Shanghai Polyc Technology Co.,Ltd is a comprehensive enterprise. We are mainly engaged in the R&D, production, and sales of Bead Mill,Basket Mill,Disperser,Inline Disperser,Industrial Mixer,High Shear Emulsifier,Mixing Kettles,Mixing Kettle & Reactor,Production Line. In the future, Polyc Machine will continue to implement the business philosophy of 'customer is God, quality is life, development seeks innovation, and friends make a win-win situation', and unites with the benevolent people of the national community to create a better future! Our company has a highly educated and professional technical team. According to production demands, our team members provide related technical support to promote the production for quality products. With rich manufacturing experience and strong production capability, Polyc Machine is able to provide professional solutions according to customers' actual needs.
Don't forget to contact us to order.
