Product Features:

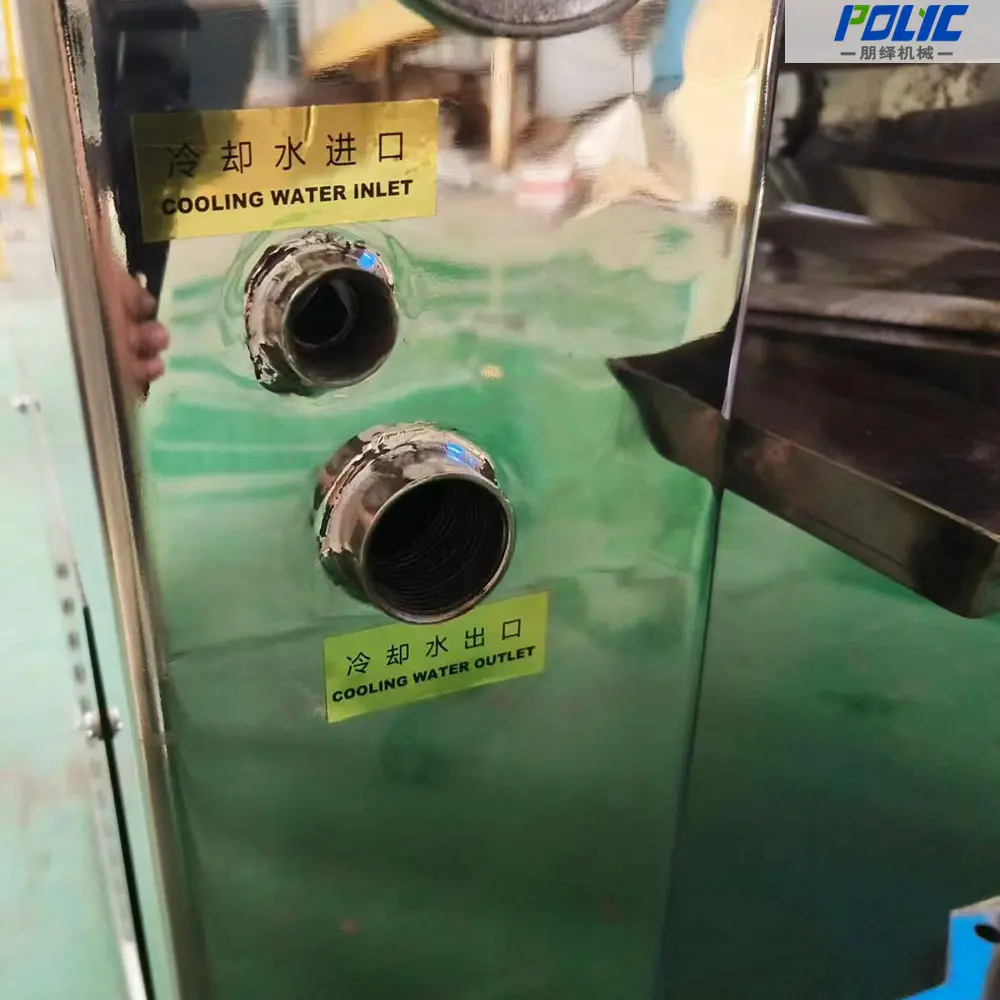

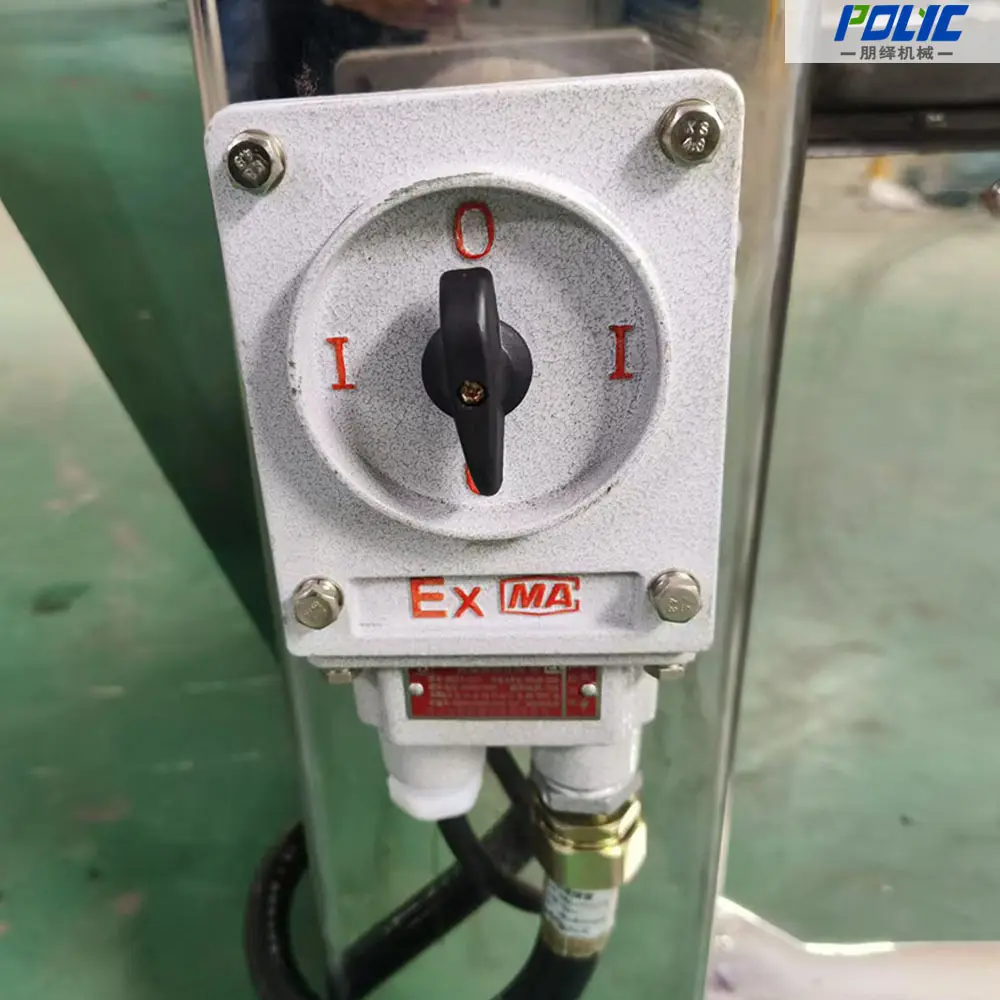

The PTM Triple-roller mill can be designed as per materials viscosity to be suitable for materials with high viscosity. mid viscosity. low viscosity respectively. A little rise in temperature, stable quality of the finished product. Excellent cooling results can be achieved by inputting cooling water into the roller when the machine is running. Normally the temperature increase will be less than 10C. And the quality of the finished products is ensured. Customized options. The machine can be an Ex-proof type. The roller material can be Ceramics material such as zirconium, aluminum oxide etc.

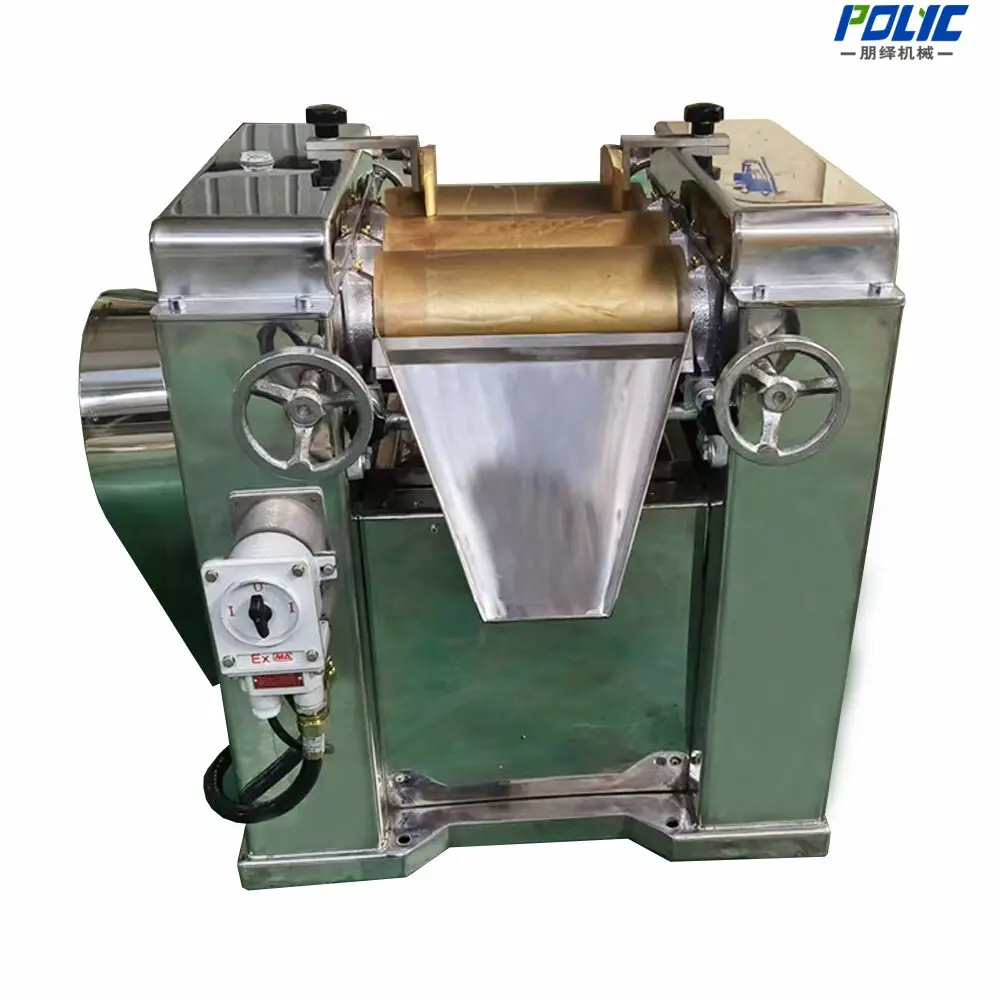

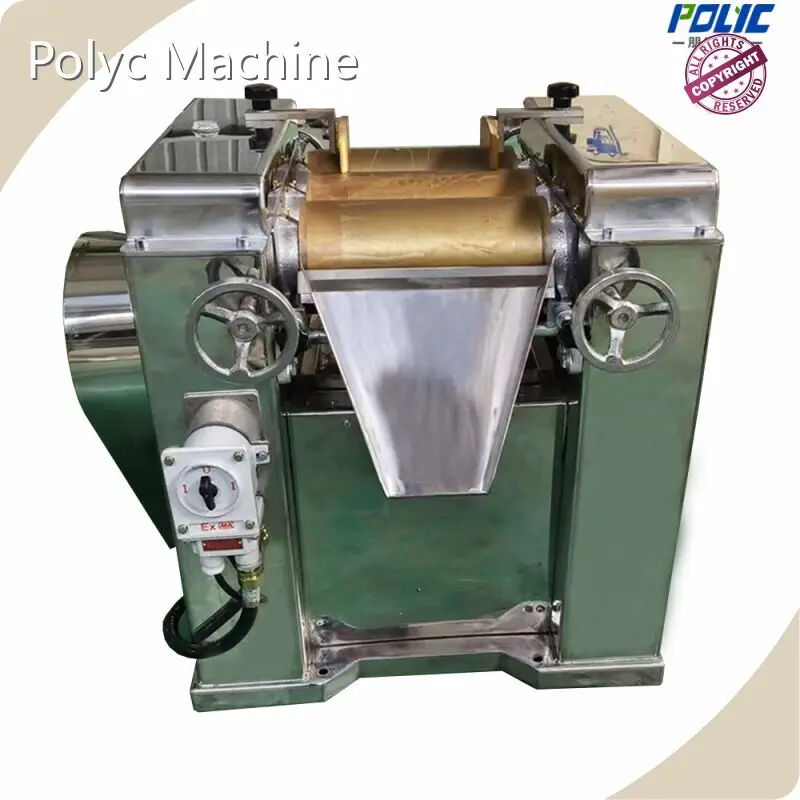

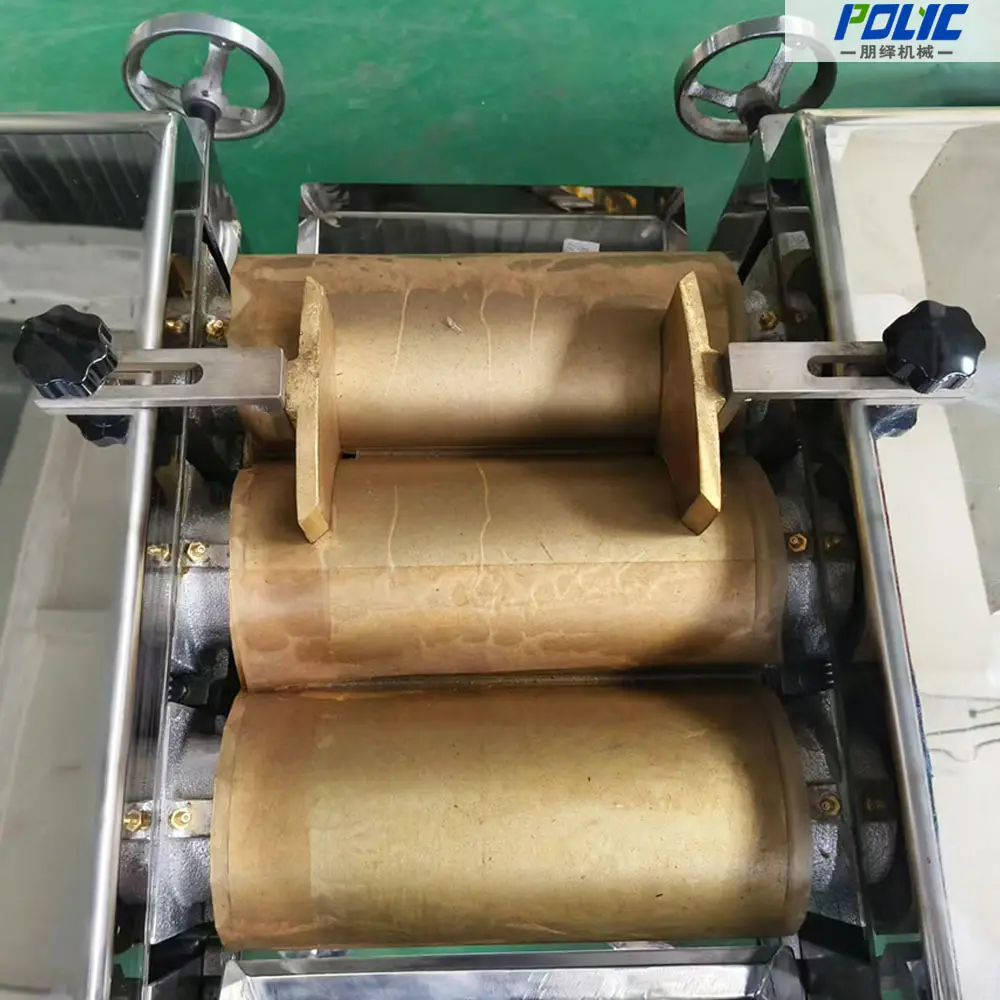

The working principle of the Triple -roller mill: The equipment consists of three rollers fixed on the frame and driven directly by the motor. The rotation direction between rollers is generally different, the former roller rotates forward, the rear roller rotates backward. The speed of the former roller is quick, while the speed of the rear roller is slow. The mid roller is fixed, former and rear rollers are mounted on the slide with a spring device. Adjust the distance between three rollers by handwheel. The material, charged from the space between the rear roller and middle roller, is squeezed by the rollers to obtain a smaller particle size. Then the material is rolled out by the fast roll (Roll rotates at high speed). The scrapper at the end of the fast roller separates materials from the roller and falls into the collection barrels.
