Industrial Mixer Manufacturers High Viscosity Mixer Wholesale - Polyc Machine
Product details of the industrial mixer manufacturers
Product Information
The different materials are designed by Shanghai Polyc Technology Co.,Ltd to create a rich variety of industrial mixer manufacturers. The product performs its functions properly during the service life. Shanghai Polyc Technology Co.,Ltd provides customers with sales, support, design, processing, production, and other one-stop service.
Product Features:
● The stirring paddle in the kettle rotates while revolution, which make material flow around, so it can realize mixing (compounding) effect in short time;efficient mixing and kneading, mixing without dead angle, viscosity 0-1.5 million cps;
● Laboratory and industrial grade to 2000L processing capacity can be;

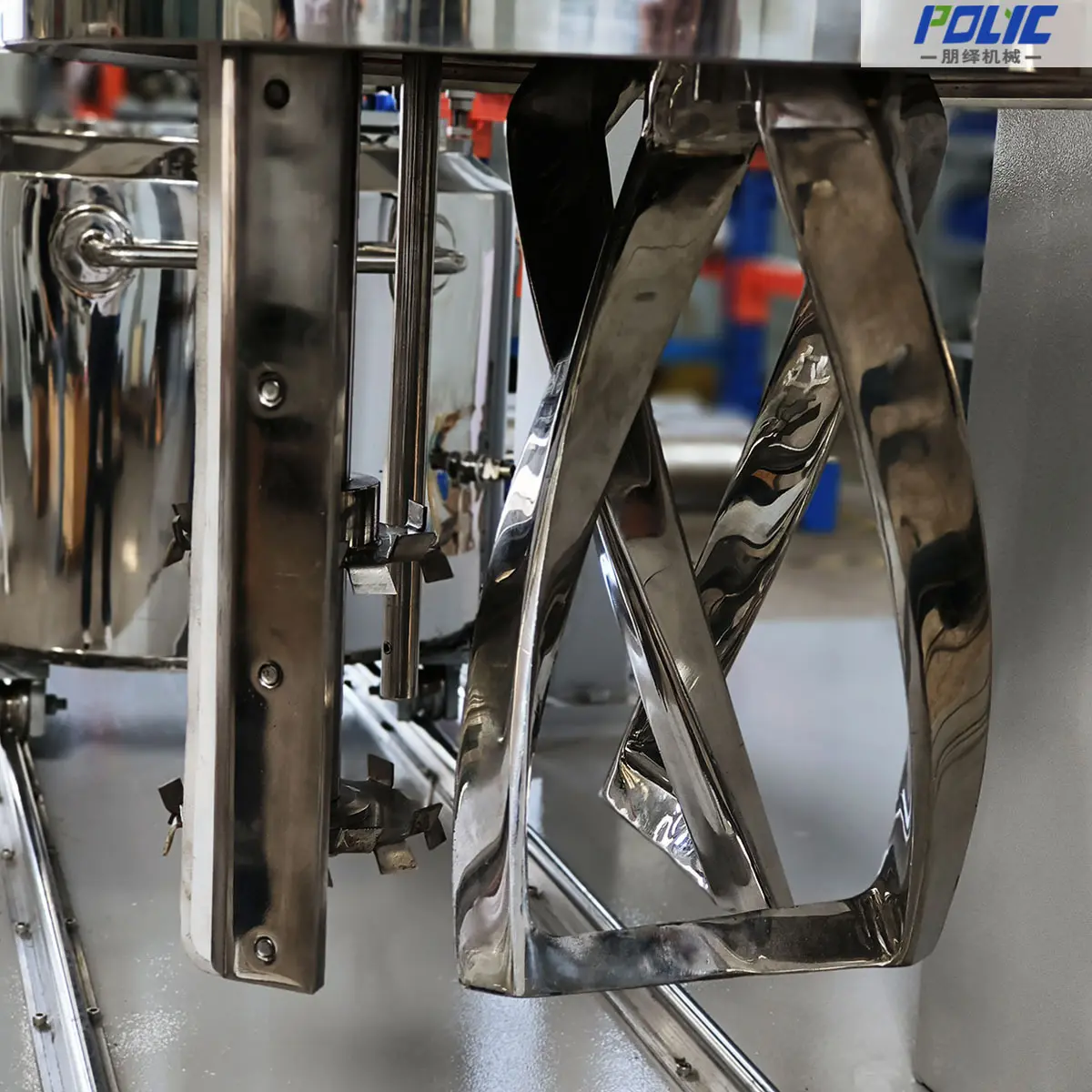

● There are various blades as frame, paddle and twist of dough frame for low speed blade can be chosen.
● Vacuum design ensure material work under sealed environment, Limit negative pressure -0.098-0Mpa, high vacuum retention;
● Heating means of kettle can be electrical heating, steam heating, hot water or oil circulation heating, intelligent temperature director can control temperature precisely.Temperature controllable, accuracy ±1℃, range: 0-220℃;
● Discharge method: extrusion discharge, positive pressure discharge, pump transport;
● Optional: Contact material (304/316L), contact material spraying, electrical control (explosion-proof type, control panel /PLC);
Technical Parameters:
|
Parameter/Type |
PMX-02L |
PMX-05L |
PMX-100L |
PMX-200L |
PMX-500L |
PMX-1000L |
|
|
Tank size (Dia.×Dep) |
φ180×120/150 |
φ240/288×180 |
φ600×460/500 |
φ720/750×650 |
φ1000×380 |
φ1250×1000 |
|
|
Capacity(L) |
Full volume |
3/3.8 |
8/11.7 |
130/140 |
265/287 |
650 |
1227 |
|
|
Working volume |
2 |
5 |
100 |
200 |
500 |
1000 |
|
Power for dispers (Kw) |
0.37~0.75 |
0.75~2.2 |
4.0~11 |
11~22 |
22~45 |
37~75 |
|
|
Dispersing speed on own axis (rpm) |
0-3000 |
0-3000 |
0-3000 |
0-2500 |
0-1500 |
0-960 |
|
|
Power (Kw) |
0.37/0.75 |
0.55/1.5 |
4.0/11 |
5.5/18.5 |
15/37 |
22/55 |
|
|
Agitating speed on own axis (rpm) |
0-100 |
0-100 |
0-100 |
0-80 |
0-60 |
0-50 |
|
|
Orbital/scraping speed (rpm) |
0-60 |
0-60 |
0-60 |
0-50 |
0-40 |
0-30 |
|
|
Vacuum (Mpa) |
-0.098～-0.08 |
-0.098～-0.08 |
|||||
Our Advantages：
Product Details：
Application：
Company Advantage
• A group of production experts is introduced to provide effective guidance and suggestions for the production of quality products. They are knowledgeable, professional and dedicated.
• Founded in Polyc Machine has been focusing on the R&D and manufacture of machinery for many years. We continue to provide high-quality machinery in the future.
• Polyc Machine insists on the service principle to be active, efficient and considerate. We are dedicated to providing professional and efficient services.
• The products of our company are favored by domestic and foreign customers.
We have ample inventory and discounts for large purchases. Welcome to contact us!
