An inline dispersion machine is a high-shear, closed-system mixer designed to continuously emulsify, homogenize, and disperse powders into liquids, or mix liquid-liquid components. It operates by drawing materials through a high-speed rotor-stator assembly, providing rapid, consistent, and dust-free processing for chemicals, food, pharmaceuticals, and cosmetics.
Features of inline dispersing machine：
High Efficiency & Quality: Achieves superior homogenization, reduced particle sizes, and high-quality suspensions by using high shear and collision energy.
Continuous Production: Continuous inline dispersion equipment Often used in circulation mode (batch-to-batch or continuous) to allow faster processing times.
Powder Incorporation: Many models feature vacuum generation (e.g., YSTRAL Conti-TDS) to directly suck powders into the liquid, preventing agglomerates and reducing air introduction.
Scalability & Design: Available in various sizes (e.g., 1.5–250 kW) with stainless steel construction, allowing easy scaling from pilot to industrial production.
Versatility: Capable of handling viscosities up to 200,000 mPas, depending on the inline disperser configuration.
● High flexibility and versatility
● Low volume mixing chamber for the inline powder disperser and liquids at high output speed
● Unit for wetting and dispersing powders
● Outstanding powder induction and product homogeneity
● 40%-70% energy saving
● Manpower saving
● Dust-free operator-safe solution
● Easy cleaning and reduced dead-time between different batches
● Modular and movable set up, easy installation
● Wide range of rotors and stators in AISI 316 stainless steel to manage products characterized by different viscosities, densities, fineness of dispersion
● Vacuum suction for rapid dust absorption
● Automatic valve, resistant to suction above the mixing chamber to avoid wetting the powder inlet tubes
● Electronic speed regulation by inverter
● Surface treatments for high wear resistance inside the process chamber
● Temperature senso
● Pressure sensor
● Flow sensor
Common Applications of IDS Inline Dispersion Machine:
Food: Sauces, dressings, dairy products.
Chemicals & Paints: Pigments, dyes, resin mixing.
Pharmaceuticals: Active ingredient dispersion, creams.
Cosmetics: Emulsions and lotions.
Product Parameters：
Parameter | Power | Powder suction speed (Take titanium dioxide as example) | Speed |
Model | Kw | Kg/min | rpm |
IDS11 | 7.5/11 | 1-30 | 3000 |
IDS22 | 22/30 | 5-150 | 3000 |
IDS45 | 45/55 | 10-200 | 3000 |
IDS75 | 75/90 | 30-200 | 3000 |
Our Advantages：
REAL MANUFACTUREN
24 HOUR ONLINE
CUSTOMIZABLE
30-45 DAYS FAST DELIVERY
STRICTLY QUALITY CONTROL
3 YEARS WARRANTY
Product Details：

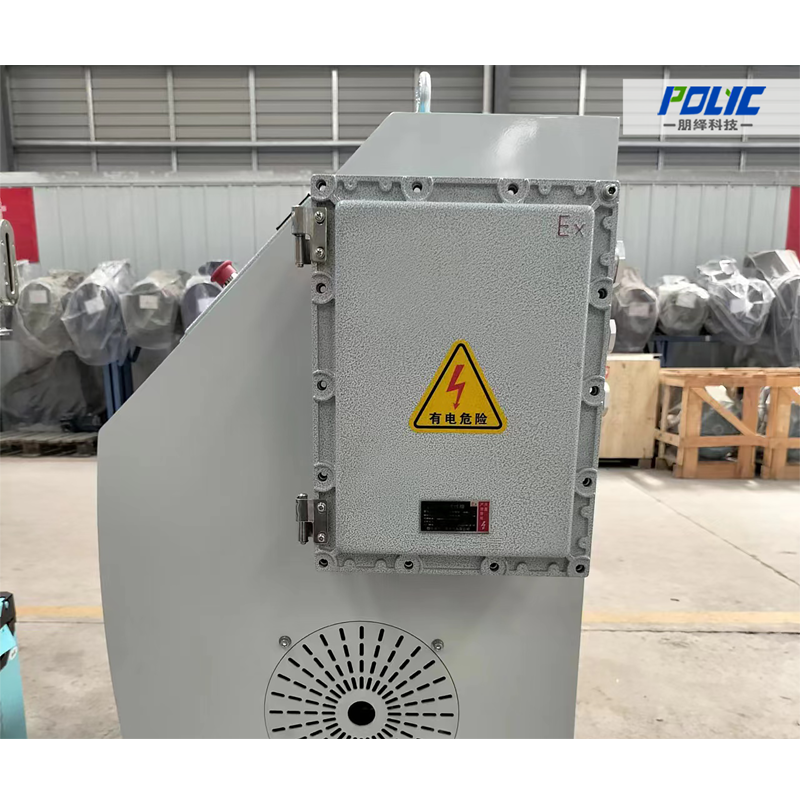

- Ex-proof Cabinet

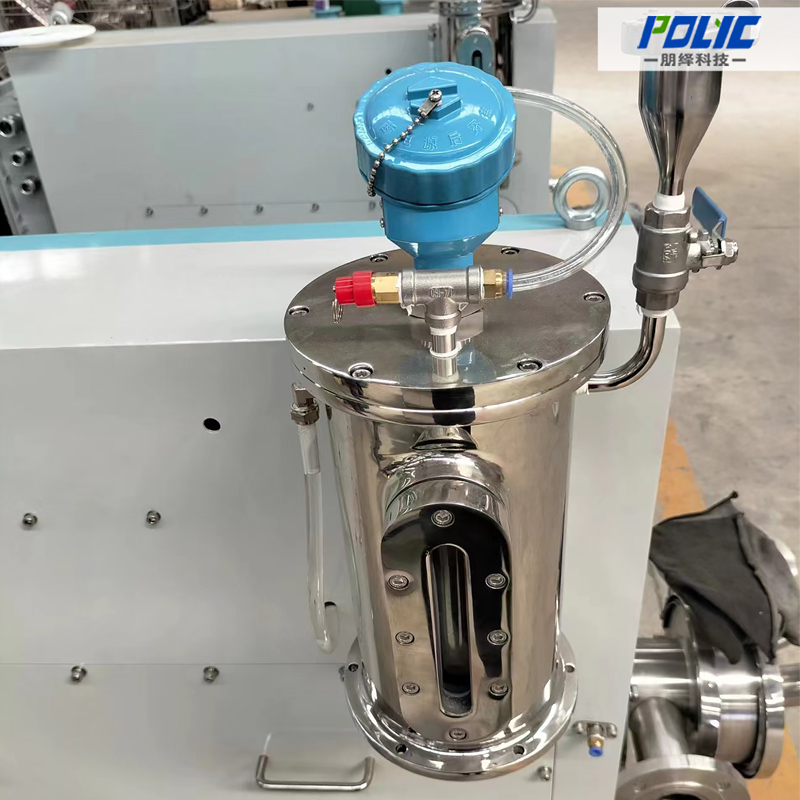

- Lubrication oil tank for mechanical seal

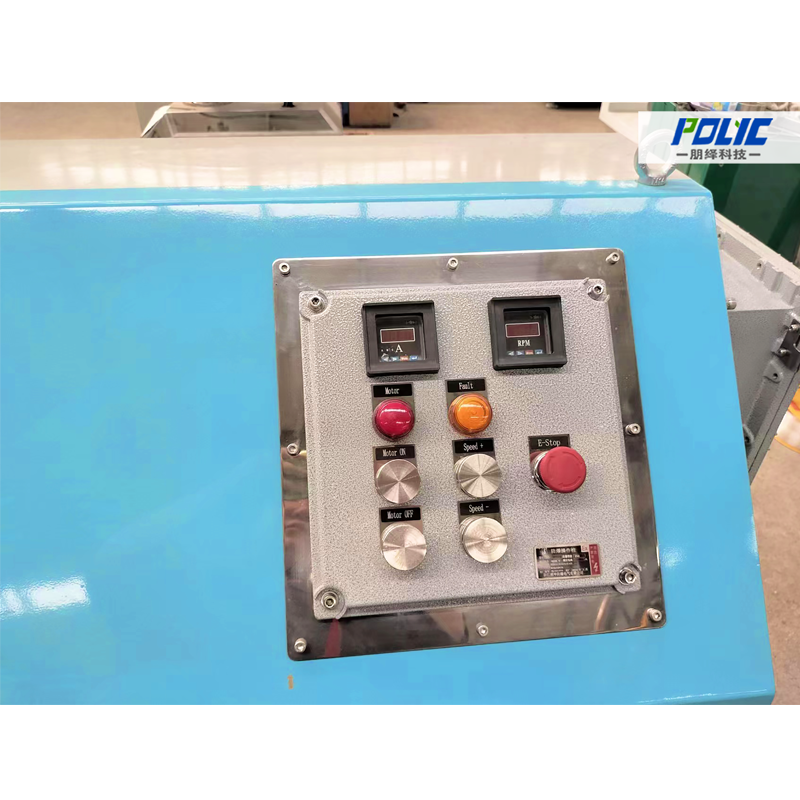

- Operation panel

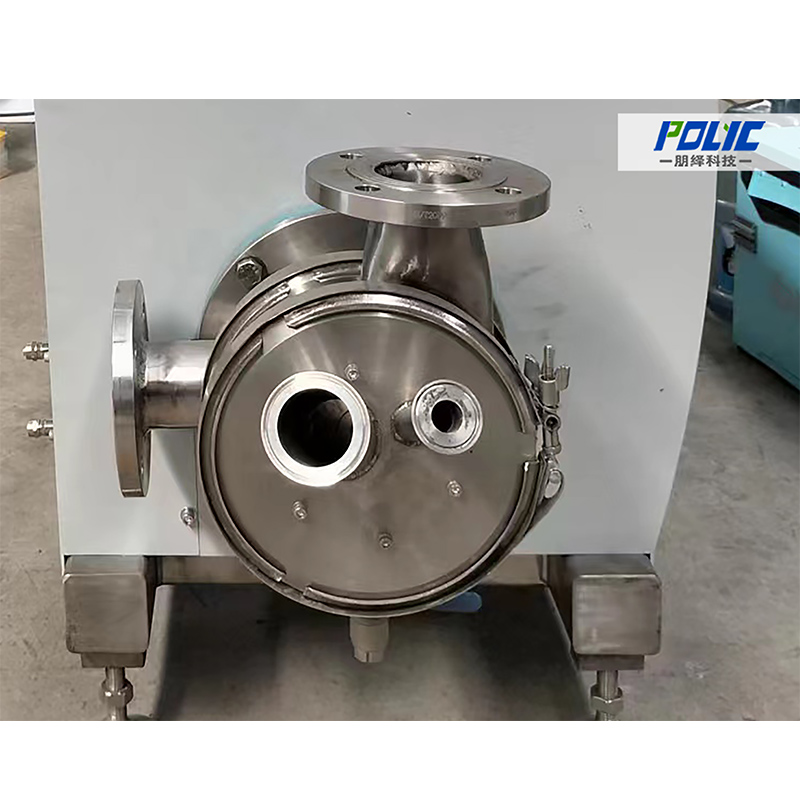

- Working Head
Application：
- Alumina
- ceramic ink
- coatings
- inkjet ink
- lithium
- nano-material
- Pharmaceutics
- Pesticide

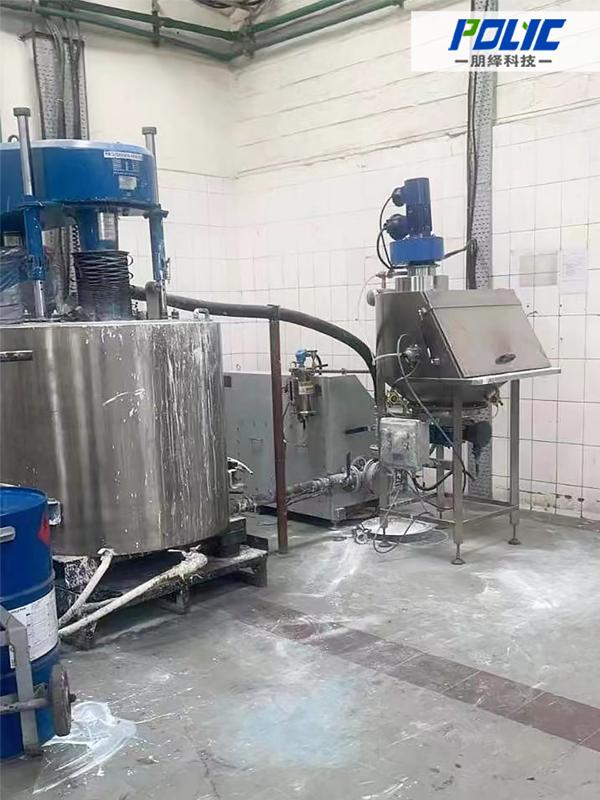

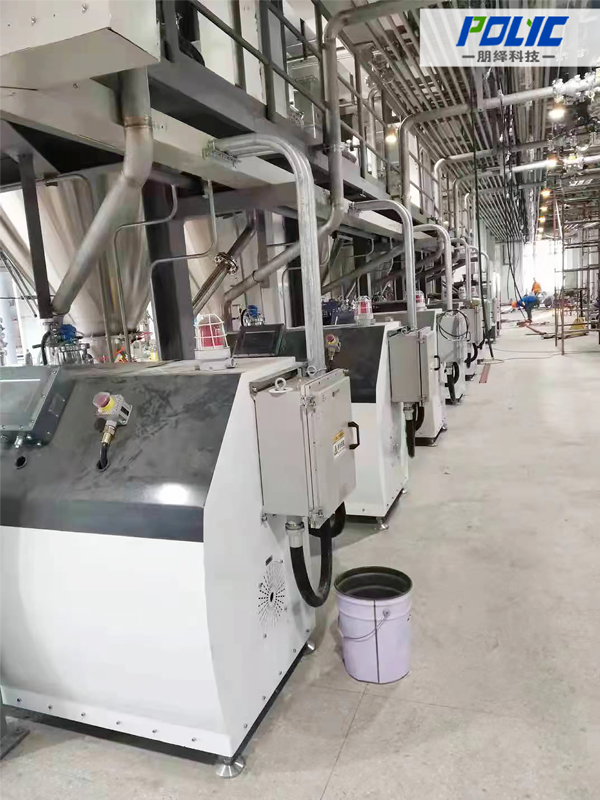

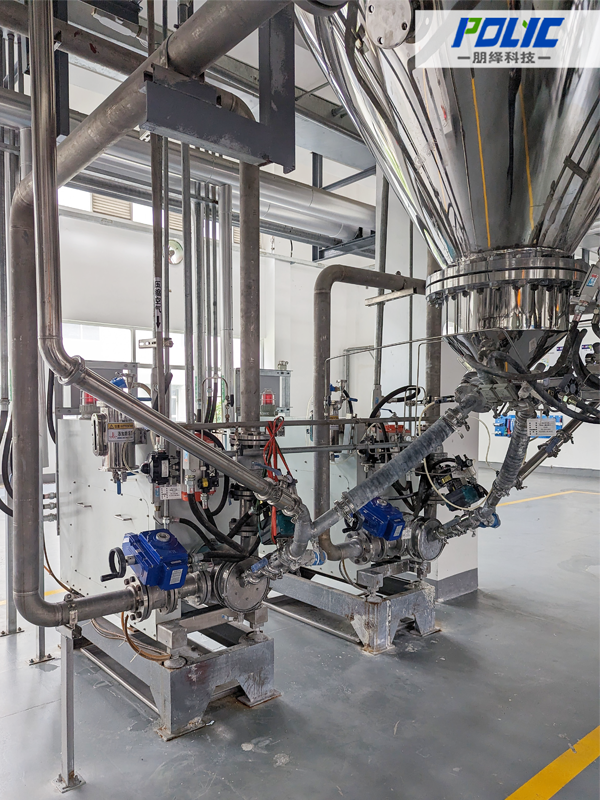

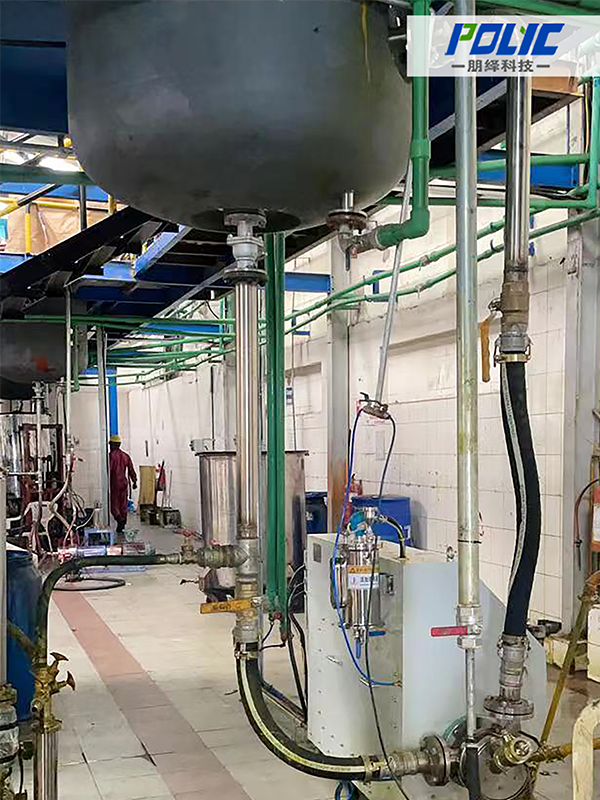

Project Cases：
